Cyberview VGA IP KVM Extender (supports 1080p Over-IP)
IP-S101
Save $97.00
Video Input: VGA
Ports: 1-Port VGA KVM
Now supporting 1080p over IP!

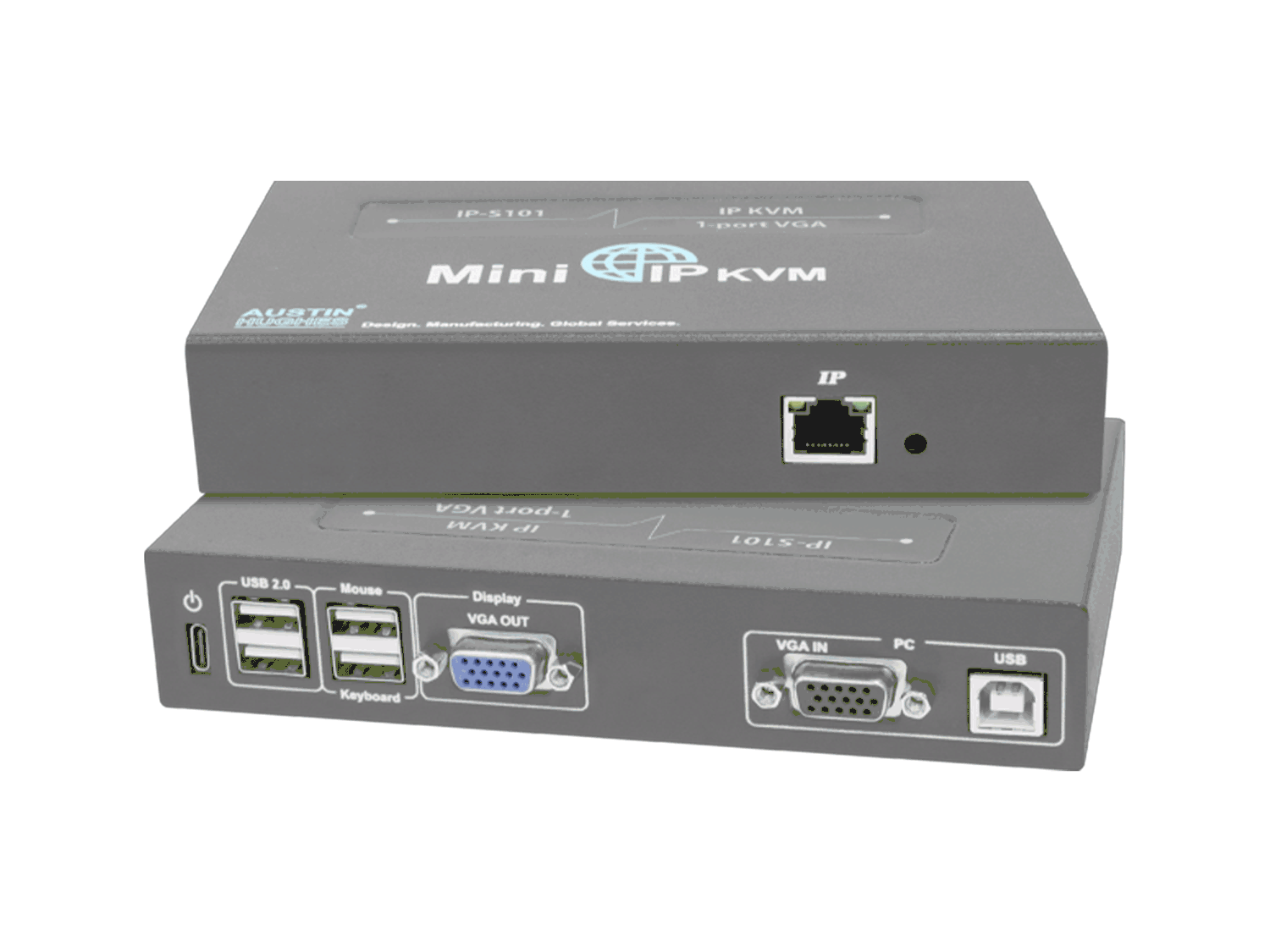

Austin Hughes IP-S101
VGA 1-port Mini IP KVM
IP-S101 Benefits
- IP remote access to PC(s) with VGA connection
- 1-port, 2-port, 4-port models for selection
- OS Support : Mac / Windows / Linux
- Stylish mini size chassis for limited spacing environment
- Powerful quad-core processor for high quality video & image via IP
- Enterprise level IP authentication
- User-friendly HTML-base & Java-free remote access over IP
- Support BIOS access, no need to run OS on the connected PC(s)
- Hot pluggable, no software or drivers required
- 2 x USB hub port share peripheral devices among PC(s)
IP-S101 Package Contents
- (1) VGA 1-port Mini IP KVM
- (1) USB-C to USB-A 6ft power cable
- (1) Mounting set
IP-S101 Resources
IP-S101 Manual (PDF)
Austin Hughes IP-S101 Specifications
| IP Console | |
| Connector | 1000 BaseT Gigabit Ethernet Port ( RJ45 ) |
| User Management | 1 x active user, 15-user login |
| Network Protocol | DHCP / BOOTP / DNS |
| Security | TLS 1.3, AES, LDAP, Active Directory (AD), HTTP(s) |
| Browser | Safari, Chrome, Firefox, Edge, etc. |
| Resolution (Max) | 1920 x 1080 / 1920 x 1200 / 1600 x 1200 |
| KVM Port | |
| Port number | 1 / 2 / 4 |
| Connector | VGA + USB-B ( Video + KB / MS ) |
| Resolution (Max) | 1920 x 1080 / 1920 x 1200 / 1600 x 1200 |
| Local Console | |
| Video | 1 x VGA |
| Keyboard / Mouse | 2 x USB-A |
| USB Hub 2.0 | 2 x USB-A |
| Resolution (max) | 1920 x 1080 / 1920 x 1200 / 1600 x 1200 |
| Compatibility | |
| Hardware Compatibility | Mac / HP / IBM / Dell PC, Server and Blade Server |
| OS Support | Mac / Windows / Linux |
| Compliance | |
| EMC | FCC & CE |
| Safety | CE / LVD & UKCA |
| Environment | RoHS3 & REACH |
| Environment | |
| Operating Temp. | 0 to 55°C degree |
| Storage Temp. | -20 to 60°C degree |
| Operating Humidity | 20 to 90%, non-condensing |
| Storage Humidity | 5 to 90%, non-condensing |
| Operating Altitude | 16,000 ft |
| Non-Operating Altitude | 40,000 ft |
| Shock | 10G acceleration ( 11ms duration ) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | USB-C |
| Consumption | Max. 11W |
| Physical | |
| Product (WxDxH) | 160 x 87 x 30 (mm) 6.30 x 3.43 x 1.18 (inch) |
| Packing (WxDxH) | 358 x 257 x 55 mm 14.09 x 10.12 x 2.17 inch |
| Weight / Net Gross | 0.472 kg / 1.04 lb 0.772 kg / 1.702 lb |
| Chassis Color | Dark |
| Chassis Materials | Steel |
Question: We have an industrial setup that has been is service for over 10 years. We currently use the following arrangement to have our PC's in one room and an industrial monitor/touchscreen located on the production floor. At the PC end we have an Avocent model AMIQDM-USB and at the PC end we have an Avocent ECMS1000R. Can I use the Cyber-View IP-S101 to replace the ECMS1000R?
Answer: Thank you for your inquiry,
Unfortunately ECMS1000R is a proprietary part of the discontinued Avocent Emerge series - you would not be able to replace the receivers with other part numbers.
We would be happy to help you find the ideal replacement for Avocent Emerge series if you would like - please feel free to contact your KVM Switches Online sales representative directly.
Question: I've got a question for the IP-S101 CyberView Combo Extender. Can we Plug two IP-S101 with the Lan port together without a Router or a switch and control the Remote PC with?
Answer: Thank you for your inquiry. Unfortunately, the IP-S101 requires some form of network to communicate over. However, from what you are describing, it sounds like you might be looking for a CATx KVM extender.
Take a look at the CV-S101. https://www.kvm-switches-online.com/cv-s101.html
The CV-S101 has a transmitter and receiver that are connected directly by CAT5 cable. Each side can have a local computer attached and can be up to 500ft apart. An Integrated 2-port KVM switch allows switching between local and remote computers.
