Minicom by Tripplite Smart 116 SPU, 16 Port Single User Cat5 KVM Switch
0SU22182A
The Minicom by Tripplite Smart 116 SPU is an 16 port, single-user analog KVM switch giving you the ability to control multiple computers or servers from a single USB or PS/2 keyboard/ video/mouse console. The rack mountable, 1U-sized switch features innovative ROC (RICC on cable) dongle technology that directly connects you to each server in the rack, eliminating cable clutter and the need for multiple consoles.

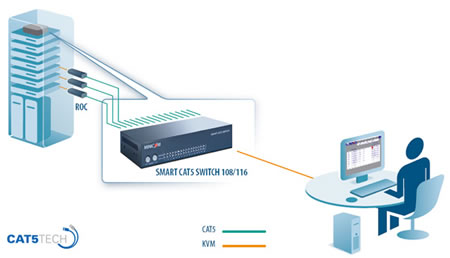

Minicom by Tripplite Smart CAT5 KVM Application Diagram
Minicom by Tripplite 0SU22182A Features:
- Control 16 servers from one USB or PS/2 keyboard / mouse console
- ROC (RICC on Cable) technology
- Extend distance between computer and switch up to 30m/100ft
- Rack-mountable, sleek, 1U space saving design
- Multi-layer security protects your corporate data
- Better server management, choice of On Screen Display, serial port or push button control
- Multi-platform - control USB, PS/2 & Sun servers from the same console
- 3 year warranty
Minicom by Tripplite 0SU22182A Specifications:
| Mechanical | |
| Height | 1.63 in. (41.5 mm.) |
| Width | 8.46 in. (215 mm.) |
| Depth | 4.80 in. (122 mm.) |
| Weight | 2 lbs. (920 g.) |
| Environmental | |
| Operating / Recommended ambient Temperature | 0°C to 40°C/32°F to 104°F |
| Storage Temperature | -40°C to 70°C/-40°F to 158°F |
| Humidity | 80% non-condensing relative humidity |
| Power | |
| Supply | Internal switching 85-260 VAC 50 / 60 Hz |
| Connections | |
| System / Serial / Local KVM | RJ45 / RJ11 / HDD15/MinDin6/MiniDin6 |
| Operating Systems and Platforms | DOS, Windows, LINUX, UNIX, MAC and all other major operating systems |
| Peripherals | SB or PS/2 keyboard, USB or PS/2 mouse, Wheel mouse, Intellimouse, 5-button mouse (104 keys only) |
| Resolution | 1600x1200@75Hz |
| System Cable | CAT5/ 5E/ 5+/ 6/ or 7 cables. FTP or UTP 2x4x24 AWG solid wire |
| Transmission Distance | Up to 30m/99ft. |
Question: I have an older Minicom are the RICCs 1SU51019 compatible with the 0SU22182A?
Answer: Thank you for your inquiry. It does appear the 1SU51019 is compatible with at least some, (if not all) firmware versions of the Smart CAT5 KVM family, of which the 0SU22182A is a member.
According to the manufacturer, the B078-101-USB-1 - https://www.kvm-switches-online.com/b078-101-usb-1.html - and 0SU51078(B078-101-PS2) - https://www.kvm-switches-online.com/0su51078.html are the currently available dongles for the Smart CAT5 family
Answer: Thank you for your inquiry. It does appear the 1SU51019 is compatible with at least some, (if not all) firmware versions of the Smart CAT5 KVM family, of which the 0SU22182A is a member.
According to the manufacturer, the B078-101-USB-1 - https://www.kvm-switches-online.com/b078-101-usb-1.html - and 0SU51078(B078-101-PS2) - https://www.kvm-switches-online.com/0su51078.html are the currently available dongles for the Smart CAT5 family
