Minicom Digital Signage OpticVision Extender Unit (Transmitter & Receiver)
0VS00001A
Discontinued
For upgrade or replacement options: Contact Us
The Minicom DS 0VS00001A is an Extender (Transmitter & Receiver) for the DS OpticVision Long range player-to-screen multimedia extension system.
The DS OpticVision is a long range optical fiber extender delivering high resolution video images and stereo-audio from player to plasma/LCD screens up to 30 kilometres (19 miles) away. The system comes fully plug-and-play and can be used either as a standalone extender, as a standalone distribution system, or in combination with ComQi's CATx-based distribution systems.
With Minicom DS OpticVision's comprehensive coverage, you can set up your media player kilometers from the display screens. Alternatively, install screens in new distant locations away from your main screen cluster. For dispersed installations, connect the system's receivers to ComQi's AVDS or DS Vision 3000 to give instant kilometres of transmission range for hundreds of screens and multiple screen clusters.
DS OpticVision extender system comes interchangeable with both single-mode and multi-mode optical fiber to suit your desired range. The system is based on the latest optical fiber technologies giving network-independent multimedia transmission without the worry of downtime. It's immunity to electrical interference also lets you install the system in any application environment.
The DS OpticVision consists of the following components: Broadcaster; Extender (transmitter + receiver); Receiver.

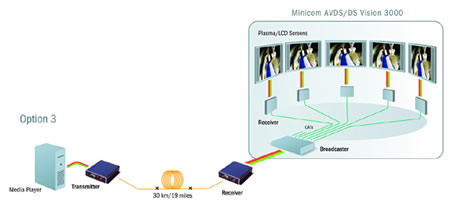

Minicom DS OpticVision Application Diagram
DS OpticVision Solution Features:
- 30km/19 miles range
- Supports WXGA (1366x 768)
- Supports HDTV resolutions up to 1080i
- Stereo-audio
- 1 optical fiber single/multi-mode cable
- Easy set up
- No color pixel skewing
- Use with ComQi's AVDS & DS Vision 3000 for optimal point to multi-point distribution
Minicom DS 0VS00001A Extender Specifications:
| Mechanical | Transmitter | Receiver |
| Height | 1.2 in. (30 mm.) | 1.2 in. (30 mm.) |
| Width | 5 in. (127 mm.) | 5 in. (127 mm.) |
| Depth | 5.3 in. (135 mm.) | 5.3 in. (135 mm.) |
| Weight | 284 g. (10 oz.) | 284 g. (10 oz.) |
| Power | External Adaptor 9-24VAC/VDC, 5watts (max) | External Adaptor 9-24VAC/VDC, 5watts (max) |
| Cables/Connectors | System out - optical: ST Video in - HDD15F Audio in - 3.5 Jack LED's: Power, Video, Audio - Green | System In - optical: ST Video out - HDD15F Audio Out - 3.5 Jack LED's: Power, Video, Audio - Green |
| Environmental | ||
| Operating Temperature | -20°C to 60°C / -4°F to 140°F | |
| Storage Temperature | -20°C to 70°C / -4°F to 158°F | |
| Relative Humidity | Up to 95% non-condensing | |
| Frequency Range | ||
| Horizontal Sync | 15 to 60 kHz | |
| Vertical Sync | 30 to 85 Hz | |
| Input | ||
| Impedance | RGB: 75 Ohms; H & V: Hi-Z | |
| Level | RGB: 714 mV p-p; H & V: 3 to 5 V p-p | |
| Input/Output Video Signals | Analog signal red, green, blue p-p 75 Ohm | |
| Resolution | Up to 1366x768 @ 60Hz Supprts HDTV 480p, 720p, and 1080i (RGBVH format only) | |
| Maximum Distance | 0.75km with MM/30km with SM (loss budget 0-15 dB) | |
| Audio | Stereo, 2 unbalanced | |
| Sampling rate | 24bit | |
| Operating Wavelength | 1310nm MM or SM | |
| Optical Fiber | Multimode 62.5/125 microns or 50/125 microns; Single-mode 8-10/125 microns | |
| LED indicators | Power, Video, Audio | |
