Minicom UTP VGA Splitter Long Range Remote Unit, 820ft.
0VS21004
Save $16.82
Discontinued
Recommended replacement: Aten VS1204T
Alternative options: Contact Us
The Minicom 0VS21004 is a UTP VGA Splitter Long Range Remote unit which simultaneously broadcasts, in real-time, video images to multiple remote screens. Using advanced CAT5 cable technology video images can be broadcast to distances of up to 250m / 820ft. Cascaded it can broadcast to dozens of screens simultaneously. The CAT5 VGA Splitter is the best solution for places where there is a need for sharing of information, in real-time, at multiple locations. For example: corporate showrooms, banks/stock exchanges, trade shows, training centers, train/bus stations and airports.
Note: The UTP VGA video splitter central units are sold separately.

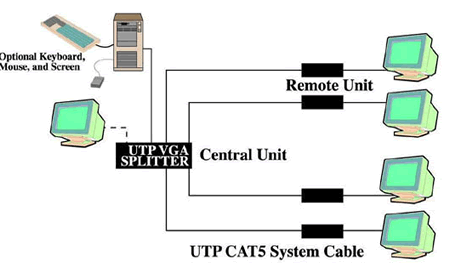

Minicom Cat5 UTP Video Splitter Application Diagram
Minicom 0VS21004 Features:
- Broadcast real-time video to multiple display locations
- Advanced CAT5 technology - low density cabling that is easy to install
- Broadcast to distances of up to 250m / 820ft
- Pure hardware solution - no software conflicts
- Supports high resolution video - 1280x1024 @75 Hz
- Sturdy metal casing
Minicom 0VS21004 Specifications:
| Mechanical | |
| Height | 1.61 in. (41 mm) |
| Width | 4.45 in. (113 mm.) |
| Depth | 3.56 in. (90.5 mm.) |
| Weight | 0.6 lb. (0.28 kg.) |
| Environmental | |
| Operating Temperature | 0° C to 40° C/32° F to 104° F |
| Storage Temperature | -40° C to 40° C/-40° F to 104° F |
| Power | 230V/120V 9V AC |
| System Requirements | |
| Computer | IBM, (SUN, MAC with Video convertors) and their 100% compatibles |
| Video | VGA, SVGA, XGA, and Monochrome |
| Video | |
| Video Signal | Red, Green, Blue; 0.7Vp-p/75 Ohm positive |
| Resolution | 1280x1024 @75Hz |
| Horizontal Sync | positive/negative |
| Vertical Sync | positive/negative |
| Impedance | 75 Ohm |
| Transmitting Distance | 250m / 820ft |
| Support | Composite Sync, Sync on Green, Separate HV Sync |
| Cable & Connectors | CAT5 UTP Cable; 2x4x24 AWG; RJ45 |
