Minicom 4-Port Cat5 VGA Splitter Central Unit
0VS22004
Save $14.45
Discontinued
Recommended replacement: Aten VS1204T
Alternative options: Contact Us
The Minicom 0VS22004 is a 4 Port UTP VGA Video Splitter central unit (110V) which simultaneously broadcasts, in real-time, video images to multiple remote screens. Using advanced CAT5 cable technology video images can be broadcast to distances of up to 110m/360ft. Cascaded it can broadcast to dozens of screens simultaneously. The CAT5 VGA Splitter is the best solution for places where there is a need for sharing of information, in real-time, at multiple locations. For example: corporate showrooms, banks/stock exchanges, trade shows, training centers, train/bus stations and airports.
Note: The UTP VGA video splitter remote units are sold separately.

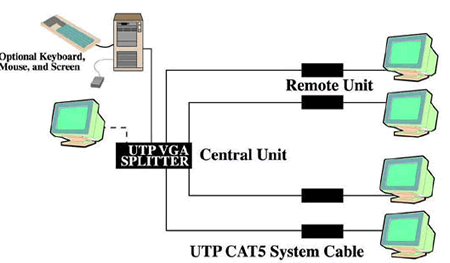

Minicom Cat5 UTP Video Splitter Application Diagram
Minicom 0VS22004 Features:
- Broadcast real-time video to multiple display locations
- Advanced CAT5 technology - low density cabling that is easy to install
- Broadcast to distances of up to 110m/360ft
- Pure hardware solution - no software conflicts
- Supports high resolution video - 1280x1024 @75 Hz
- Sturdy metal casing
Minicom 0VS22004 Specifications:
| Mechanical | |
| Height | 1.61 in. (41 mm) |
| Width | 7.78 in. (197 mm.) |
| Depth | 4.65 in. (118 mm.) |
| Weight | 1 lb. (0.45 kg.) |
| Environmental | |
| Operating Temperature | 0° C to 40° C/32° F to 104° F |
| Storage Temperature | -40° C to 40° C/-40° F to 104° F |
| Power | 230V/120V 9V AC |
| System Requirements | |
| Computer | IBM, (SUN, MAC with Video convertors) and their 100% compatibles |
| Video | VGA, SVGA, XGA, and Monochrome |
| Video | |
| Video Signal | Red, Green, Blue; 0.7Vp-p/75 Ohm positive |
| Resolution | 1280x1024 @75Hz |
| Horizontal Sync | positive/negative |
| Vertical Sync | positive/negative |
| Impedance | 75 Ohm |
| Transmitting Distance | 110m / 360ft |
| Support | Composite Sync, Sync on Green, Separate HV Sync |
| Cable & Connectors | CAT5 UTP Cable; 2x4x24 AWG; RJ45 |
