Minicom Digital Signage VGA Extender (Transmitter + Dual Screen Remote)
EXT-VGA
Save $-17.41
Discontinued
Recommended replacement: Adder ALAV100T
Alternative options: Contact Us
EXT-VGA (formerly the OVS23077) Computer Graphics Video Over Twisted Pair Extender
The EXT−VGA is a twisted pair transmitter and receiver for computer graphics video signals up to 1080p. It converts a computer graphics signal into a twisted pair signal which is then converted back to a computer graphics video signal playable on two screens at once. This VGA extender is great for digital signage for retail, transportation, entertainment, corporate communications, education, healthcare, finance and quick service restaurants
- System Range - 110m (360ft).
- Max. Resolution - 1080p.
- Place Screens Up Front & Players In Back Rooms.
- Dual Remote - Transmits to two back−to−back screens.
- Scalable - Distributes to multiple screens (with VDS splitter).
- Easy Installation - Small size, plug−and−play design & low density CAT 5 cable.

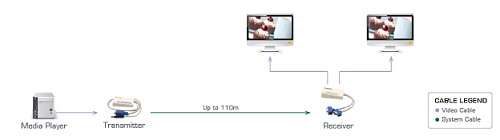

Minicom DS by Kramer EXT-VGA Application Diagram
Minicom DS EXT-VGA Specifications:
| Mechanical | |
| Width | 3.5in. (89mm) |
| Depth | 1.8in. (46mm) |
| Height | 1.0in. (25.3mm) |
| Components | 1 transmitter, 1 (dual screen) receiver |
| System Cable (not supplied) | CAT 5/5e/6/7 cable, 2x4x24AWG solid wire |
| Max Range | 360ft. (110m) @ 720p |
| Screen Resolutions | Up to 1080p/1920X1080 @60Hz (depending on cable type/length) |
| Connectivity | |
| Transmitter | VGA - 15-pin HD, system - RJ-45, power - USB |
| Receiver | 2 VGA- 15-pin HD, system - RJ-45 |
| Power | |
| Transmitter | From connected computer via USB connection |
| Receiver | 5V DC external switching power adapter |
| Environmental | |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Humidity | 80% non−condensing relative humidity |
| Warranty | 3 years |
The EXT-VGA is also known as the 0VS23077, OVS23077A, or 0VS23077A.
