Avocent SwitchView MP 4-Port Multi-Platform KVM
14085-001
$399.00
Discontinued
Recommended replacement: Avocent SwitchView 4SV1000-001
Alternative options: Contact Us
Access and control multi-platform servers from one set of peripherals with the Avocent SwitchView 14085-001 MP KVM switch. You gain direct connections to PC, Sun or USB servers. Mouse translation capabilities let you work with a PS/2 or Sun mouse to connect to Sun workstations, USB computers, IBM PC/AT or PS/2 systems. The SwitchView MP switch eliminates the need for expensive adaptors and convertors often needed to work with multi-platform systems. Avocent SwitchView 14085-001 KVM switches offer affordable switching solutions for today's home offices and small offices. Avocent SwitchView 14085-001 KVM switches are easy to install. Some models let you share speakers and a microphone between PCs. A USB hub and/or support for DVI high video resolution are available on other SwitchView switches. Compact, space-saving KVM switches eliminate desktop clutter and provide efficient PC access.

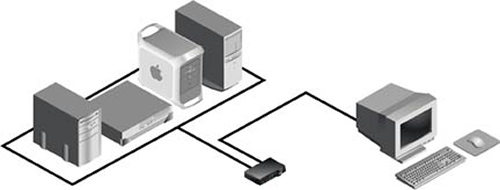

Avocent SwitchView 14085-001 MP KVM switch Function Diagram
Avocent SwitchView 14085-001 KVM Features and Benefits:
- PC access: You can access up to 4 multi-platform PCs from a single keyboard, monitor and mouse.
- Flexible platform support: Supports USB, PS/2 and Sun platforms
- Mouse translation: No extra software or adaptors needed for mouse operation across multiple platforms
- No adaptors needed: Eliminates adapters and converters sometimes needed for multi-platform systems
Avocent SwitchView 14085-001 KVM Specifications:
| Mechanical | |
| Height | 1.9" (4.3cm) |
| Width | 8.1" (20.57cm) |
| Depth | 5" (12.7 cm) |
| Weight | 0.9 lbs. (0.4kg) |
| Environmental | |
| Operating Temperature | 41 to 104 F (5 to 40 C) |
| Storage Temperature | -4 to 122 F (-20 to 50 C) |
| Power | |
| Operating Voltage | 100-240 VAC |
| Power Frequency | 50-60 Hz (external power) |
| Supported Hardware | |
| Computers | IBM PC/AT, PS/2, Sun workstations, USB computers and 100% compatibles |
| Monitor | VGA, SVGA, (XGA, XGA-II with adaptor) Maximum Resolution: 1600 x 1200 @ 85 Hz |
| Peripherals | PS/2 keyboard, PS/2 mouse, Microsoft Explorer mouse, Microsoft IntelliMouse Family, IBM Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman Marble wheel, Logitech Marble FX and Kensington 4 button mouse, Sun Type 5 and Type 6 |
| Standards | |
| Approved Agency | UL 1950, CSA C22.2 No. 950, EN60950, IEC 950 FCC part 15B, EN55022, EN50082 |
