Avocent SwitchView 1000 16 Port KVM Switch w/ OSD
16SV1000-001
Download the
SwitchView 1000 Manual (PDF)
The Avocent SwitchView 1000 16SV1000-001 rack mount, 16-port KVM switch provides PS/2 and/or USB connectivity for SMB server rooms. This single-user KVM switch has an on-screen display (OSD) and supports 2048 x 1536 video resolutions. This SwitchView 1000 switch can be cascaded to support up to 256 target devices. With a 1U high design, this 16-port KVM switch does not compete for valuable rack space in SMB server rooms. The 16SV1000-001 is flash upgradeable for fast and easy updates. The password protection feature gives you the benefit of added security access to your business-critical servers. SwitchView 1000 Manual (PDF)

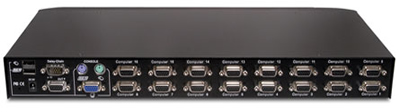

Avocent SwitchView 16SV1000 KVM Switch Backside
Avocent SwitchView 16SV1000-001 Features:
- On-screen display (OSD): Simple control through an on screen menu
- Password protection: Secure access is based on password protection
- Programmable autoscan: Customize scanning times between attached systems
- Flash upgradeable: Convenient upgrades mean that the product never goes out of date
- USB hot key switching: Switch via USB keyboard sequence
- Daisy chain - auto initialization: Connect multiple units together without complicated configuration
- USB & PS/2 system/target support: Supports both PS2 and USB systems
- USB & PS/2 peripheral/user support: Supports PS/2 or USB peripherals to control a mix of PS/2 or USB systems
- 1U height: Fits perfectly into a standard rack. Does not use a large amount of valuable rack space
- Combo cables: Uses a three-in-one KVM cable that supports USB or PS/2 target devices
- Video resolution: 2048 x 1536 video resolution supports the most demanding server room applications

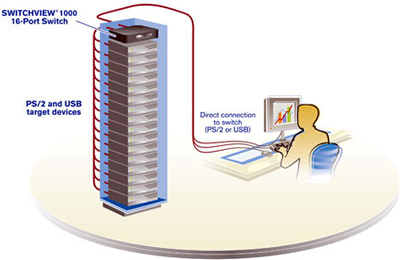

Avocent SwitchView 16 Port KVM Switch Diagram
Avocent SwitchView 16SV1000-001 Specifications:
| Mechanical | |
| Height | 1.75 in. (4.45 cm) |
| Width | 16.14 in. (41 cm) |
| Depth | 6.49 in. (16.5 cm) |
| Weight | 4.85 lbs. (2.2 kg) |
| Environmental | |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Storage Temperature | -4 to 140 F (-20 to 60 C) |
| Power | |
| Operating Voltage | 5V |
| Power Frequency | 60 Hz |
| Input | DC 9V |
| Supported Hardware | |
| Computers | PC, Mac, Sun (with USB or PS/2 interface) |
| Monitor | 2048 x 1536 maximum |
| Peripherals | PS/2 keyboard, PS/2 mouse, USB keyboard, USB mouse, VGA monitor |
| Standards | |
| Approved Agency | FCC, CE, C-Tick, UL, cUL |
UPC 636430038766
EAN 0636430038766
Question: how many kvm cables come with item 16SV1000-001,
Answer: Thank you for your inquiry. The 16SV1000-001 does not come with any KVM cables. However, the 16SV1000BND1-001 is a bundle package that comes with 8 cables: four 6ft and four 9ft three-in-one KVM cables.
You can view the 16SV1000BND1 here: https://www.kvm-switches-online.com/16sv1000bnd1.html
Question: Is there an annoying broadcast feature that allows you to send one reboot command to all servers at one (like ATEN switches)
Answer: Thank you for your inquiry. We are not aware of any commands that would allow a user to reboot all of the attached servers.
Answer: Thank you for your inquiry. The 16SV1000-001 does not come with any KVM cables. However, the 16SV1000BND1-001 is a bundle package that comes with 8 cables: four 6ft and four 9ft three-in-one KVM cables.
You can view the 16SV1000BND1 here: https://www.kvm-switches-online.com/16sv1000bnd1.html
Question: Is there an annoying broadcast feature that allows you to send one reboot command to all servers at one (like ATEN switches)
Answer: Thank you for your inquiry. We are not aware of any commands that would allow a user to reboot all of the attached servers.
