1000ft. Sheilded Cat5e Cable
2L2901
Save $152.35
The 2L2901 Shielded Digital Video Extension Cable is a twisted pair shielded with conductive metal film. The cable utilizes copper wires, which are widely used for data transmission. Its outer metal layer protects signal transmissions from electromagnetic interference and reduces the impact caused by electrical noise. The 2L2901 can support long distance connections while safeguarding transmission quality.
Product Features and Benefits
- Supports high quality RGB video transmission
- Contains 305 m/1000 ft of shielded low skew cable
- Delay Skew: 1 - 100 MHz 25nS/100m Max.
- Outer Jacket Material: PVC
- Outer Shield Material: Aluminum Mylar
- Conductor Material: 24 AWG bare copper

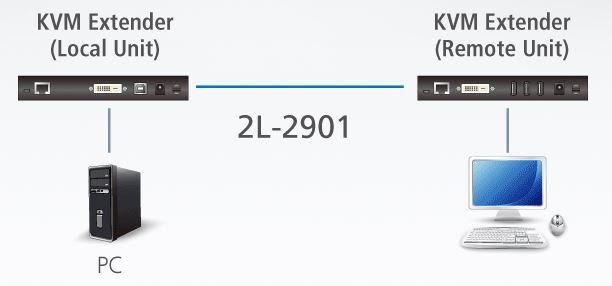

- Compatible with ATEN digital Cat 5 video extenders, KVM extenders, and Cat 5 KVM switches
- UL, ETL approved
| Conductor | |
| Size | 24 AWG |
| Construction | Bare Copper |
| Conductor Diameter | 1/0.5±0.008 mm |
| Insulation | |
| Average Thickness | 0.20 mm |
| Diameter | 0.99 ± 0.05 mm |
| Material | Polyolefin |
| Color Codes | Orange x White/Orange Stripe Blue x White/Blue Stripe Brown x White/Brown Stripe Green x White/Green Stripe |
| Shielded(1) | |
| Material | Mylar |
| Coverage | 100% Coverage with 25% Overlapping |
| Drain Wire | |
| Size | 26 AWG |
| Material | Tinned Copper |
| Construction | 7/0.16 ± 0.008mm |
| Shielded(2) | |
| Material | Aluminum Mylar (Aluminum inward) |
| Coverage | 100% Coverage with 25% overlapping |
| Jacketed | |
| Average Thickness | 0.45 mm |
| Diameter | 5.6 ± 0.20 mm |
| Material | PVC |
| Color | Black |
UPC 672792005312
EAN 0672792005312
