SwitchView 4-Port PS/2 or USB 2.0 KVM Switch
4SVPUA20-001
The all-in-one Avocent SwitchView (4SVPUA20-001) multimedia desktop 4-port KVM switch lets you switch between USB or PS/2 systems, share your USB devices and control multimedia applications. The Avocent SwitchView (4SVPUA20-001) MM2 model provides independent switching for KVM and two USB 2.0 hub ports. With the Avocent SwitchView (4SVPUA20-001) multimedia KVM switch, you can use one compact device to control multiple PCs and share access to your USB devices; digital camera, CD ROM, PDA, scanner or printer.
Note: Cables are not included

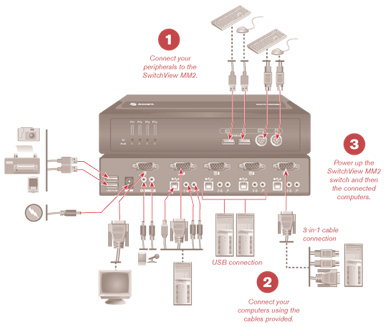

Avocent SwitchView (4SVPUA20-001) Function Diagram
Avocent SwitchView (4SVPUA20-001) Features and Benefits:
- Multi-platform USB or PS/2 system support
- Integrated USB hub for sharing USB peripherals/devices
- Audio feature share speakers and a microphone
- Independent switching for KVM and two USB 2.0 hub ports
- USB 2.0 multimedia key mapping for USB keyboard Compact, space-saving KVM switch eliminates desktop clutter
- 2048 x 1536 high VGA resolution ideal for desktop graphical applications
- Push-button or multiple keyboard hotkeys for customize channel selections
- Auto scanning allows easy monitoring of attached computers
- Color-coded cables and connectors provide quick installation
- Easily add computers without powering down the KVM switch or attached computers
- Power supply included
- Error free boot up with keyboard and mouse emulation
- Backed by Avocent 2 year warranty and technical support
- Also available in a 2-port model
Avocent SwitchView (4SVPUA20-001) Specifications:
| Mechanical | |
| Height | 1.7 in (4.3 cm) |
| Width | 5.5 in (13.97 cm) |
| Depth | 3.5 in (8.89 cm) |
| Weight | 1 lb (.45 kg) |
| Power | |
| Power Frequency Input | 9V DC @1A external transformer |
| Supported Hardware | |
| Computers | PS2 or USB (2.0) |
| Monitor | (VGA, SVGA, XGA, QVGA, SXGA, UXGA, QXGA) Maximum resolution of 2048 X1536 |
| Peripherals | USB (2.0) Keyboard and Mouse or PS/2 Keyboard, PS/2 Mouse, IntelliMouse (PS/2 only), IBM Scroll Point, Logitech 2 Button, Logitech Trackball Scroller, Microsoft Trackball Scroller, Microsoft Scroller, Microsoft Intelleye Five Button |
| Standards | |
| Approved Agency | En55022 Class B, EN55024,61000-3-2,6100-3-3, FCC 15 Class B, CE |
Question: Am needing to control a mix of computers running Windows 2000 up through Win 7. One of the computers only uses PS2 and another only uses USB for the mouse and keyboard. Also need to relocate them approx 30 feet from the switch and keep audio capabilities. Would this unit be suitable and if so, what adapter cables would be needed? Thanks.
Answer: Thank you for your inquiry. This Avocent unit may or may not be the best fit for your needs. So that we can better understand your environment, please contact a KVM Switches Online sales engineer, toll free, at 1-877-586-6654 to discuss your project in greater detail.
Question: We have been having little issue with where two port or four port switch box will not work on one of the ports. We have updated the bios of PC / Switch box and still no luck. Same switch box works on Windows XP but will not work on Windows 7. Or any Windows 7 machine for that matter. This is a very urgent matter because we are rolling out Windows 7 in our environment and needs this resolved ASAP.
Answer: Thank you for your inquiry. Unfortunately, detailed product support is beyond the scope of this simple FAQ.
Having said that, this issue my be tied to the way in which Windows 7 manages idle USB ports. Here is a link to a discussion for a potential workaround found at the Avocent Support Community site:
http://community.emerson.com/networkpower/support/avocent/desktop/w/wiki/1296.switchview-and-switchview-secure-windows-7-usb-keyboard-and-mouse-frozen. We reached that page from this thread: http://community.emerson.com/networkpower/support/avocent/f/105/t/3769.
The Avocent support community site is also a good source for additional support ideas. The main page can be reached here: http://community.emerson.com/networkpower/support/avocent/.
You can also reach Avocent support directly at the following page: http://www.emersonnetworkpower.com/en-US/Support/Technical-Support/KVM/Pages/default.aspx.
Question: I need the 6' and 12' part numbers for all three cabled to operate this device. All three cables mean the source and two destination cables.
Answer: Thank you for your inquiry. The source cables (from server to KVM switch) are part numbers SVUSB-6 (6ft) and SVUSB-9 (9ft).
To attach a Keyboard, Mouse, Monitor and audio, this switch will simply use the cables attached to those devices - plugged directly into the switch itself.
Question: Hello, I have a trouble with USB Hub in 2-port model. Every device that is connected to the Hub ports seem to have no power (i.e. LED in optical mouse is off). I have two-PC connected and no external power. Maybe these ports are turned off and there's a key sequence to turn them on, or these ports are enabled only with external power adapter? Thank you in advance!
Answer: Thank you for your inquiry,
For trouble shooting your Avocent 2SVPUA20, please contact Avocent Technical Support. They will walk you through the troubleshooting process e.g. If you have wireless devices connected to the USB Hub, this may be causing the issue.
Question: Does it support 1080p Full HD monitors? Do you ship to mexico?
Answer: Hello, unfortunately we cannot ship internationally at the time. You will need to reach out to Avocent directly. This VGA switch is capable of 2K (2048x1536) maximum resolution - including 1080p Full HD.
Question: Does this device come with any cables? Thank you!
Answer: Thank you for your inquiry. No, this Avocent SwitchView 4SVPUA20-001 does not come with any cables. The required cables are the SVUSB-6 or the SVUSB-9.
Question: Does this product support Windows 7? We had issues with older model and had to buy emulators...
Answer: According to Avocent, this hardware based KVM should work with Windows 7 in standard configurations.
