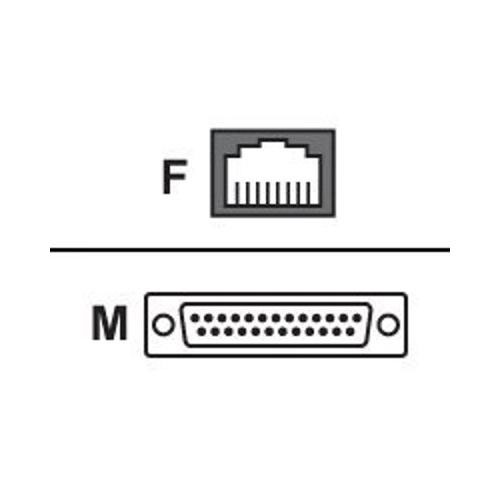

Cyclades RJ-45 to DB-25M crossover adapter
ADB0025
Cabling Diagrams: Adapter (ADB0025)
RJ-45 (Cyclades) to DB-25, crossover
RJ-45 DB-25
Cyclades M / F
-------- --------
3 TxD ------------ RxD 3
6 RxD ------------ TxD 2
4 Gnd ------------ Gnd 7
2 DTR --------|--- DSR 6
|--- DCD 8
7 DCD ---|-------- DTR 20
8 DSR ---|
1 RTS ------------ CTS 5
5 CTS ------------ RTS 4
UPC 636430034089
EAN 0636430034089
