Adder AV extender receiver, No DeSkew
ALAV100R-US
The AdderLink AV Series ALAV100R delivers high video resolutions and quality audio up to 300m/1000 feet using standard CATx cable (x=5,5e,6,7). Designed for use in Digital Signage applications, the design of this extender allows for flexible distribution that can grow in line with project developments and ensures direct delivery of crystal clear communication to consumers at the point of decision.

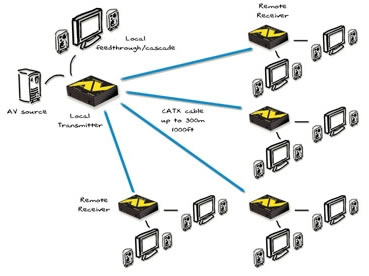

Adder AV-Series KVM Extender System Diagram
Adder ALAV100R Features:
- Extends high-resolution video and high fidelity audio up to 300m
- Local port on transmitter to connect local screen and speakers or for cascading other AdderLink AV 100T transmitter units
- AdderLink AV 100R duplicates input from transmitter allowing for 2 video and 2 audio outputs
- Can be used as a receiver up to 300m from AdderLink AV 100T or AdderLink AV 104T transmitters
- Extends video and audio across a single CATx cable
- Extra fine video quality at resolutions up to 1600 x 1200 at 200m and 1280 x 1024 at 300m
- High fidelity click less digital audio (16bit, 44.1 kHz, stereo)
- Independent sharpness and brightness control
- DDC support
- Feed through / cascade port at transmitter
- Dual video and audio outputs at receiver
- Use stand alone or rack mount 16 modules across 3U
- Advanced spike suppression circuits for reliability in 'noisy' installations
- All metal construction
- Power / video indication confirm correct operation
- Adjustable cable equalization amplifiers
- Audio transmitted as digital signals to ensure high fidelity and low noise levels
Adder ALAV100R Package Includes:
- IEC style power supply and power cord
- Safety and installation leaflet
- CD manual
- Stick on rubber feet
Note: the rack panels are not included and need to be purchased separately as required
Adder ALAV100R Specifications:
| Mechanical | |
| Height | 0.98 in. (25 mm.) |
| Width | 3.8 in. (98 mm.) |
| Depth | 3.7 in. (95 mm.) |
| Environmental | |
| Temperature Tolerance | 0-40°C (32 to 104°F) |
| Humidity Tolerance | 5 to 60% non-condensing |
| Power | |
| Operating Voltage | 100-240VAC |
| Power Frequency | 50-60Hz |
| Usage | 5VDC at 500mA |
| Video Resolutions | |
| 1600 x 1280 | up to 200 meters/650 feet |
| 1280 x 1024 | up to 300 meters/1000 feet |
| Extension | |
| Distance | Up to 300 meters/1000 feet using CATx (x=5,5e,6,7) |
| Technology | Differential analogue signaling for video signals |
| Connectors | |
| Video output | 2 x blue 15-pin high-density D-type female |
| Audio output | 2 x light green 3.5mm audio jack |
| CATx cable | 1 x RJ45 |
| Power adapter | 2.5mm DC jack |
| Approvals | FCC class A, CE marked |
Question: Is there a way to mount the ALAV100R receivers on a wall? They will be connected to a network port behind a TV, then need to plug into the TV's VGA port. I would like to hide them behind the TV.
Answer: Thank you for your inquiry. Adder recommends two options for vertical mounting AdderLink AV100 series extenders. First, there is a rear mounting slot for use with a fixed screw protruding from the mounting surface. The second method Adder recommends is to use self-adhesive Velcro strips for mounting on inclined surfaces.
