Avocent AMX5000 User Station

Avocent's AMX5110 desktop user station doubles as a monitor stand and provides access from the desk to the switch. The Avocent AMX5110 connects to the user's multi-platform KVM peripherals and sends the KVM signals over an industry standard CAT 5 cable to Avocent's AMX5000 matrix switch. Avocent's exclusive AutoTuning technology allows the Avocent AMX5110 to automatically compensate for varying cable types and lengths, including CAT 5, CAT 5e and CAT 6 and adjust for signal losses each time a switch is made to a server. The Avocent Avocent AMX5110-AM user station works with patented OSCAR on-screen interface. OSCAR uses multi-lingual, intuitive menus for Point and Click system configuration and server selection.

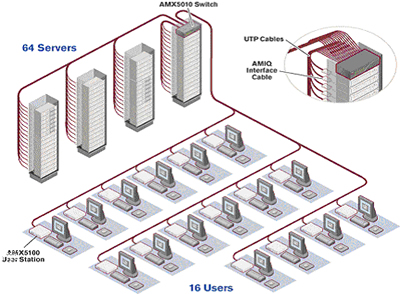

Avocent AMX5110-AM Function Diagram

Avocent Avocent AMX5110-AM Features and Benefits:

• Provides end-to-end UTP cable, including CAT 5, CAT 5e, CAT 6
• Supports multi-platform peripherals: PS/2 and Sun
• Doubles as a monitor stand with zero footprint on the desktop
• Provides high quality video
• Works with patented OSCAR on-screen graphical interface
• Provides optimal 1900x1600 video resolution up to 1,000 feet away from the server

Avocent Avocent AMX5110-AM Specifications:
