AlterPath OnBoard 40-port Service Processor Manager

The AlterPath OnBoard ATP8140-001  offers a standard security schema for external access and providing proxy and conversion services to ensure that connected servers are isolated and protected from the external production network. The AlterPath OnBoard allows enterprise-class authentication, authorization and auditing (AAA) security and encryption, and extends this functionality to all servers. By providing a combination of proxy services, translation services, virtual private networks and dynamic access control, users are ensured a secure connection. Furthermore, the AlterPath OnBoard provides controlled access to services in each server's service processor after all authentication and authorization has taken place.

The AlterPath OnBoard ATP8140-001 provides a standardized feature set for out-of-band management of servers from multiple vendors by extracting the native service processor interface for configuration, KVM, console and power control, and displaying the information in an easy-to-understand format. Server administrators need only learn the simple AlterPath OnBoard interface and not other server management interfaces.

The AlterPath OnBoard adds value by extending the functionality of service processors. Features such as data logging, event detection and notification, SNMP proxy, graphing and alarms for sensors and shared access to management ports are standard on the AlterPath OnBoard.



Cyclades AlterPath ATP8140-001 OnBoard Applications:

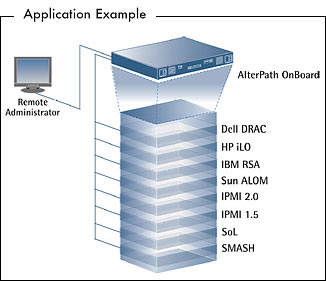

• Manage HP iLO, IBM RSA, Dell DRAC, IPMI, Sun ALOM and others from a single user interface
• Centralize authentication, logging, health monitoring and control of servers
• Provide the security needed to effectively manage service processors remotely

Cyclades AlterPAth ATP8140-001 OnBoard Benefits:

• Reduce the cost of deploying, monitoring and troubleshooting servers by reducing the number of IP addresses and Ethernet switch ports required for service processors
• Decrease the time to access, monitor and control servers by using a single login and user interface to service processors
• Eliminate security concerns associated with remote management of service processors
• Restrict user access to specific service processor features: power, sensors, console, Web


Cyclades AlterPath OnBoard Specifications:

Operating System		Linux
Security		SSHv1 and SSHv2 Local, RADIUS, TACACS+, LDAP, NIS, Active Directory/NTLM and Kerberos authentication Token-based strong authentication (SecurID) Local fallback user authentication (remote failure) Group authorization from authentication servers System event logs VPN through PPTP or IPSec
User Interface		Web Management Interface (HTTP/HTTPS) Configuration wizard for first time Web users Command line interface (Linux Shell) OnBoard type commands SNMP Security profiles for quick settings of security features NTP for time server synchronization Optional integrated power management with the AlterPath PM Supports service processor management software from most server vendors
Service Processor Management		Simultaneous access to multiple service processors Support for service processor console redirection (remote KVM) Serial console over LAN Restricted user access to power, sensors, console, event logs or native Web DHCP for dynamic IP address assignment Supports proprietary service processors
Upgrades		Upgrades available on FTP site Flash upgradeable TFTP support for network boot
