SmartAVI UXGA Router, 8 UXGA to 8 Remote Monitors
AV08X08S
The SmartAVI AVRouter AV08X08 routes 8 UXGA to 8 Remote Monitors. All signal formats are catered for including VGA, SVGA, XGA and UXGA. Standard VGA connectors (HD15 sockets) are used on the rear for ease of installation for video connectivity. The AV08X08 contains a high bandwidth (400MHz) routing matrix for the Red, Green and Blue video channels and separate switching layers for stereo audio. The color signals and are then balanced internally and combined with the audio signals. The combined signal is then driven out through boosted signals.
The AV08X08 router can be controlled via a RS422 port connecting via a RJ45 on the front of the main chassis. Two connectors are provided for expansion, allowing a simple Cat5 patch cable to link to additional units. An adjustable rotary switch allows each unit to be assigned a unique ID read when the unit is first powered up. An optional Windows application (SmartNetControl) is available including a RS232 to RS422 converter. In addition to the centralized control from a computer, each output can be selected individually at the remote receiver location. There is an option for local audio output on the front of the unit to help accommodate multi-room audio systems. The audio is presented as Jack stereo pair. Output drivers allow the audio to be connected to any amplifier input at line level. The audio will follow whichever source device is selected.
Applications
- Wall Displays
- Digital Media
- Airports
- Dealer Rooms
- Shopping Center
- Security
- Hotels/Resorts

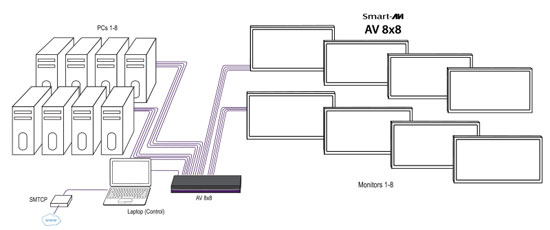

SmartAVI AVRouter Functional Diagram
SmartAVI AV08X08 Features:
- High quality video & audio switching
- High resolution up to 1600 x 1200
- Infra Red and RS422 control
- PC Windows software control
- Can be mixed with other video signal (RGB, YUV, RGBS)
SmartAVI AV08X08 Package Includes:
- AV08X08 router
- CC-PWR06-US
- SM-R232R422
- SM-RJ45RS422
- CC-CAT5-05
- Smart CONTROL software (SM-CSW )
SmartAVI AV08X08 Specifications:
| Mechanical | |
| Height | 5.24 in. (13.30 cm.) |
| Width | 19 in. (48 cm.) |
| Depth | 11.25 in. (28.57 cm.) |
| Weight | 20 lbs. (9 kg.) |
| Rack Space | 3U |
| Power | |
| Voltage | 90-230V IEC 1A A/S 50/60 Hz |
| Video | |
| In | HD15 Female |
| Out | HD15 Female |
| Bandwidth | 400MHz |
| Input Signal Level | 1Volt pk-pk into 75R |
| Output Impedance | 100 Ohms |
| Input Impedance | 75R Ohms |
| Connector | HD15 socket |
| Format | VGA/SVGA/XGA/RGBHV/ RGsB/CVBS/YC/YUV/RGBS |
| Syncs | TTL5VDC |
| Bandwidth | Horizontal Sync up to 85KHz |
| Audio | |
| In | 3.5m Stereo Jack |
| Out | 3.5m Stereo Jack |
| Signal | 15KHz 0dB unbalanced 100ohms impedance |
| Connector | RCA or 3.5mm Stereo Jack |
| IR | Individual control |
| RS422 | Dual RJ45 sockets |
UPC 813280020732
EAN 0813280020732
