Avocent AutoView AV1500 KVM Switch

The AutoView 1500 KVM (AV1500-001) switching system includes multi-platform support, advanced cable management options and a convenient on-screen display.

Avocent AutoView 1500 (AV1500-001)  8-port, dual user KVM switch provides PS/2, USB, Sun and serial connectivity, advanced cabling options, flexible access and a next-generation user interface in one switching solution.  The Avocent AutoView 1500 (AV1500-001) switch server interface modules and integrated access cables automatically assign and retain unique server names, which simplifies installation and eases re-configuration. With advanced cable management and flexible access for two simultaneous users, the Avocent AutoView 1500 (AV1500-001)  switching system is an ideal solution for today's small office and mid-sized business networking environments.

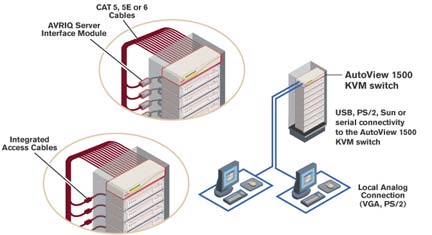

Avocent AutoView 1500 (AV1500-001) Diagram

Avocent AutoView 1500 (AV1500-001) Features and Benefits:

• IIntegrated access cables offer PS/2 or USB keyboard, video and mouse connectivity in one, slim CAT 5 cable, which reduces cable bulk, saves time and reduces cost.
• Server interface modules support all major server platforms and VT100 serial-based devices.
• Provides two simultaneous local users with access to eight PCs and network devices.
• Advanced on-screen management provides easy configuration and server selection.
• BIOS-level access ensures connection to the attached servers regardless of the health or type of operating system.
• A space-saving 1U rack mount design.
• Flash-upgrades firmware for fast and easy updates for appliances and server interface modules.
• Keep Alive power safeguard allows attached servers to continue network functions in the event of power failure to the AutoView switch.

Avocent AutoView 1500 (AV1500-001) Specifications:

Mechanical
Height	1.75 in. (4.45 cm)
Width	17.00 in. (43.18 cm)
Depth	11.00 in. (27.94 cm)
Weight	8 lbs. (3.6 kg)
Environmental
Operating Temperature	50 to 122F (10 to 50C)
Storage Temperature	-4F to 140F (-20 to 60C)
Power
Operating Voltage	100 - 240 VAC Autosensing
Power Frequency	50 - 60 Hz
Input	40 W Maximum
Supported Hardware
Computers	IBM PC/AT, PC and 100% compatibles
Monitor	XGA, XGA-II with adapter, 1600 x 1200 @ 85 Hz resolution
Peripherals	PC keyboard, PC mouse, Microsoft Explorer mouse, Microsoft IntelliMouse family, IBM Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman Marble Wheel, Logitech Marble FX and Kensington 4-button mouse
Standards
Approved Agency	UL FCC Class A, cUL, ICES Class A, CE, N, GS, IRAM, VCCI, Class A, MC Class A, C-Tick
