Avocent AutoView 3200 Digital KVM Switch
AV3200-001
The Avocent AutoView 3200 (AV3200-001) switch is a 16-port KVM system providing server access for two remote digital users and one local analog user. The AV3200 Digital KVM Switch includes local USB peripheral support and provides convenient access to PS/2, Sun, and USB servers and serial-based devices. The Avocent AV3200 on-board Web interface means that no additional software is required for remote server access.

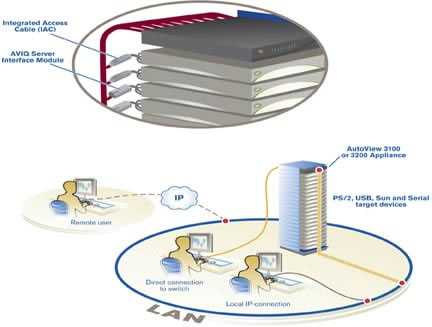

Avocent AutoView 3200 Diagram
Avocent AV3200 Features and Benefits:
- 16-port KVM switch provides flexible remote server access with two remote digital paths and one local analog user.
- On-board Web interface--The user's PC requires no additional software for remote server access.
- Multi-platform support--Local PS/2 and USB connections and multi-platform target devices, including PS/2, USB, Sun and serial support
- Integrated access cabling or AVRIQ support--Lowers overall cost with CAT 5-designed integrated access cables for PS/2 or USB connectivity
- Encrypted IP communication--Switch supports SSL-128bit, DES, 3DES or AES encrypted communication
- Powerful user access control--64 user accounts with access control lists for each user classified by:
- User - KVM access only
- User Administrator - KVM access, and ability to configure users and user admin.
- Appliance Administrator - KVM, ability to configure user, user admins, and appliance administration and configuration
Avocent AV3200 Technical Specifications:
| Mechanical | |
| Height | 1.72 in. (4.37 cm) |
| Width | 17.00 in. (43.18 cm) |
| Depth | 10.98 in. (27.98 cm) |
| Weight | 7.3 lbs (3.31 kg) |
| Style | Rack Mount |
| Environmental | |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Storage Temperature | -4 to 158 F (-20 to 70 C) |
| Power | |
| Operating Voltage | 100 - 240 VAC |
| Power Frequency | 50/60 HZ autosensing |
| Input | 40 W maximum |
| Supported Hardware | |
| Computers | PS/2, Sun, USB |
| Monitor | VGA, SVGA (XGA, XGA-II with adaptor), Maximum Local Port: 1600 x 1200; Maximum Remote Port using a DSRIQ module: 1280 x 1024 @ 75 Hz |
| Peripherals | USB keyboard and mouse, PS/2 keyboard, PS/2 mouse, IntelliMouse |
| Standards | |
| Approved Agency | UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST |
UPC 636430034690
EAN 0636430034690
Question: Are there any end of life issues projected for this KVM? Is there another KVM I should be using instead?
Answer: Thank you for your inquiry. We are not aware of any current EOL plans for this KVM.
Question: What is the difference between the AV3016 and the AV3200?
Answer: Thank you for your inquiry. The AV3200 allows for two remote users while the AV3016 is a 16 port KVM that only has a single remote or IP user.
Question: Is the rack mounting HW included-I don't see it here?
Answer: Thank you for your inquiry. Yes the mounting hardware is supplied. In addition to the switch itself, the AutoView 3200 comes with a local country (US) power cord, rack mounting brackets, Rack Mounting Bracket Quick Installation Guide, AutoView 3050/3100/3200 Switch Quick Installation Guide, and one null modem cable.
Question: What kind of adapter do i need to connect the AVRIQ-SRL to a Cisco and/or HP switch which have an RJ45 console?
Answer: Thank you for your inquiry. According to the Avocent, the suggested way to connect to a Cisco or Sun Netra RJ45 Serial Port is to use the RJ-45 to DB-9 crossover adapter: ADB0037
http://community.emerson.com/networkpower/support/avocent/dckvm/autoview/w/wiki/696.connecting-an-avriq-srl-to-a-cisco-or-sun-netra-rj45-serial-port.aspx
Question: Can I reboot a device like a server or network switch using IP KVM switch?
Answer: Thank you for your inquiry. If we understand your question correctly, BIOS level access and software rebooting are pretty standard features of KVM over IP switches.
However, for a cold reboot (from a powered down state) or hard restart (when the server is hung) a network addressable, outlet-switchable power distribution unit is required. In terms of network switching gear or other serial devices, the ability to do a soft-reboot will depend on the capabilities of the equipment.
Question: Can I cascade Autoview analog KVM switches (such as a 2015) below this switch and thus increase the number of servers I can access via IP?
Answer: Thank you for your inquiry. According to our Avocent contact, yes you can cascade analog AutoView KVM switches below the AV3200.
Question: Which is the standard guarantee of this product?
Answer: Thank you for your inquiry. Avocent provides a non-transferable, 24-month warranty (with registration in US, registration not required in Europe) against defects in material and workmanship on most Avocent products.
You can read more about the Warranty here: http://www.emersonnetworkpower.com/en-US/Support/Warranty/Infrastructure-Management/Hardware-Support/Pages/Emersons-Avocent-Warranty.aspx.
Question: I have a AV3200 KVM along with AVRIQ-USB2 cables. Should the CAT5 cable be straight-through or cross-over. I suspect straight-thru.
Answer: Thank you for your inquiry,
The Avocent AC3200 uses straight-through CAT cables for the computer interface dongles, as well as for the network connection.
You can find our selection of CAT 5/6/7 cables here.
