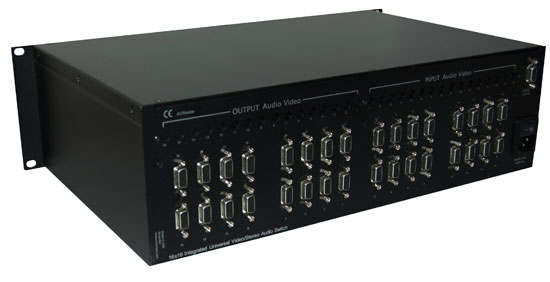

Routes 64 UXGA/Component to 16 Monitors
AV64X16S
Save $4,856.92
The AVRouter 16 series of products provides an unprecedented range of switching and distribution equipment for XVGA and HD video by combining the features of a high-quality video matrix, interactive infrared control, and an easy to use Windows¨ - based control software.
Features
- High quality audio and video switching
- High resolution up to 1920 x 1200
- InfraRed and RS422 control
- PC Windows software control
- Can be mixed with other video signal (RGB, YUV, RGBS)
Applications
- Wall Displays
- Audio Visual Presentation
- Digital media
- Shopping centers
- Airports
- Security
- Dealer rooms
- Point of sale
- Control rooms
- Hotels
| Mechanical | |
| Height | 5.24 in. (3.81 cm) |
| Width | 19 in. (21.84 cm.) |
| Depth | 11.25 in. (13.71 cm.) |
| Weight | 20 lbs. |
| Bandwidth | 400MHz |
| Input Signal Level | 1 volt pk-pk into 75R |
| Output Impedance | 150 Ohms |
| Input Impedance | 75 Ohms |
| Format | VGA / SVGA / XGA / RGBHV / RGsB / CVBS / YC / YUV / RGBS |
| Syncs | TTL5VDC |
| RS-232 | 9600bps, DB9 Female, TX, RX, GND |
| IR | 3.5mm connector with 38khz |
| GUI | Windows Xp, Windows 7 compatible |
| Power Voltage | 90-230V IEC 1A A/S 50/60 Hz |
UPC 813280020787
EAN 0813280020787
