ADDERView Matrix C1100 User Station

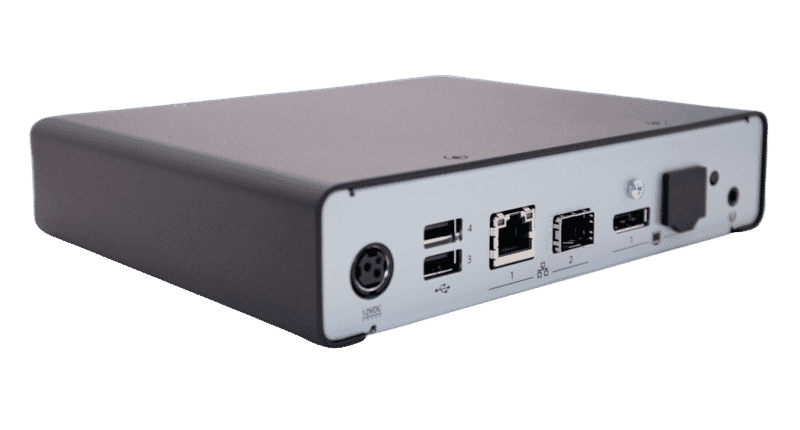

ADDERView Matrix AVM-C1100-USR Overview

Part of the ADDERView Matrix C1000 Series, the ADDERView Matrix C1100 USR enables the use of standard infrastructure to extend the user away from the computer equipment and infrastructure.

Each ADDERView AVM-C1100-USR is the master controller of its own matrix and can have up to 16 sources programmed into its target list. A Computer Access Module (CAM) can connect to up to 256 different user stations. The switching time between computers is less than one second to provide a high quality user experience. Switching can be achieved by using an On Screen Display (OSD) or by Hotkeys from a keyboard or external device. Extension distance is not limited to a single 100 meter cable length. If you need to extend further, the unit is fitted with an SFP cage to accept fiber optic transceivers for much greater distances. Using a spatially-lossless encoding system, with 1:1 pixel mapping, the AVM-C1100-USR provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer. The AVM-C1100-USR supports USB devices including graphics tablets, jog shuttles, joysticks, card readers and 3D explorers, alongside mass storage devices. The system can disable types of devices, meaning there is no need to physically block USB ports. The ADDERView Matrix system can deliver stereo audio (bi-directional) or embedded video standard stereo audio (uni-directional).

The ADDERView Matrix system allows any user station to connect to any computer access module so different users can share a resource at the same time. The ADDERView AVM-C1100-USR supports up to 2560 x 1600@60 Hz resolutions and can also support 1920 x 1200 up to 120Hz. Intelligent EDID management allows either the true characteristics of the monitor to be passed back to the computer or a fixed one. This ensures perfect video display without additional configuration. ADDERView Matrix devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
