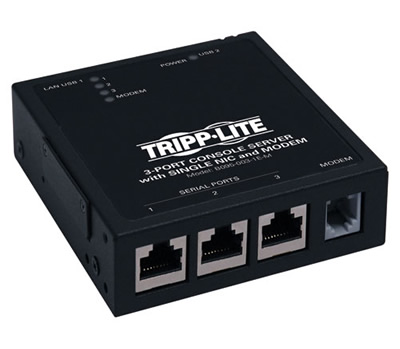

Tripp Lite 3 Port IP Serial Console / Terminal Server Built-in Modem

The Tripp Lite B095-003-1E-M is a 3 Port IP Serial Console / Terminal Server Built-in Model and is the perfect solution for In-Band and Out-of-Band management of equipment located in remote branch offices, equipment closets on multiple floors, etc.

In-Band solutions utilize operational network interfaces for communicating to remote sites. When remote sites experience network outages, the only access available is Out-Of-Band solutions. Out-Of-Band connectivity is a seemless, automatic failover to the B095-003-1E-M internal modem. Tripp Lite branch office solutions provides a single interface to swiftly and efficiently manage your IT infrastructure.

Tripp Lite Serial Console Servers are equipped with advanced security features. This solution utilizes flexible authentication methods that will query directory servers such as LDAP, Radius, TACACS+ and still retains a local user list for Out-Of-Band channels. This unit employs advanced encryption modes and detailed device logs to ensure your remote site is protected.

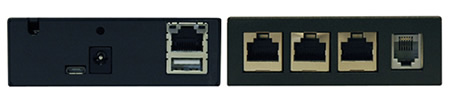

Tripp Lite B095-003-IE-M Side Views

Tripp Lite B095-003-IE-M Features:

Highly Integrated with Out of Band Access

• 3 - RS-232 Serial Console Ports
• Internal Modem for Out-of-Band Access
• Cisco Compatible Cabling
• Network UPS Tools for UPS Monitoring and management
• Powerman for PDU and RPS management
• Secure Web Management ( HTTPS)
• Internal Temperature Sensor
• 2 Gig Internal USB Flash

Security and Authentication

• Secure Shell (SSH V2 and V3)
• IPsec VPN support
• TACACS+ , RADIUS and LDAP authentication
• PAP/CHAP authentication (dial up)
• Dial back support
• Local authentication
• System event syslog
• SSH port and IP forwarding support
• IP packet filtering
• Unlimited user accounts

Serial Console Port Management

• SSH tunneled serial bridging
• Windows 2003 Server ACS and EMS support
• SUN / Solaris ready (no inadvertent breaks)
• Break over SSH support
• Port triggers with SMNP and email alerts
• Offline data logging (Syslog, NFS, CIFS)
• Online data buffering and logging
• Multiple users per port (with port sniffing)
• Access by TCP port
• Telnet / Unauthenticated Telnet SSH/Raw TCP connect
• RFC 2217 - Port Redirection
• Windows Remote Desktop or VNC over serial support
• Clustering
• Per serial port user access lists

LAN Console Port Management

• Secure SSH tunneling (TCP/UDP applications)
• Secure Remote Desktop access to Windows XP/2003
• Secure VNC access to Sun/Windows /Linux computers
• Secure HTTP(S) access to browser controlled appliances
• Native IPMI 1.5 and 2.0 (RMCP/RMCP+) support for BMC and service processor access and control
• Secure SOL (Serial over LAN) access to BIOS, EMS and ACS
• Service processor access (IPMI, ILO, LOM and more)
• Access to KVM built in to service processors (DRAC, RSA)
• Secure Telnet access
• Limit user access by LAN device and SDT service for that device
• Port triggers with SMNP and email alerts for all tunnel traffic
• Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers)
• No limit on number of hosts being concurrently accessed through the one tunnel
• Up to 50 concurrent SSH sessions (SDT tunnels) can be open at the one time
• No limit on number of clients who can access the one gateway
• Embedded DHCP server for management LAN devices

Power Management

• Network UPS Tools for UPS Monitoring and Management
• PowerMan for PDU and RPS Management
• Hotkey for in session power menu

System Management

• Secure web management (HTTPS)
• Local browser management (HTTP)
• Command Line interface (Linux Shell)
• Auto synchs with CMS6100 central monitoring system
• Nagios distributed monitoring
• ARP-Ping (IP address assignment)
• SNMP

Environmental Monitoring

• Internal temperature sensor
• Digital I/O ports for external smoke, fire, vibration, water detection and door contact sensors
• Support for additional EMD5000 Environmental Monitoring Devices
• Web interface for envrionmental graphing, logs, status and alerts

Operating System

• Linux with source code access
• Custom development kit

Tripp Lite B095-003-IE-M Specifications:
