Dataprobe Contact Closure Transport Over Ethernet, Output Unit
COE-8O
The Dataprobe COE-8O is the Output Unit for the COE-8 Contact Closure Transport over Ethernet system. The COE-8 is a system for transporting switch closure information over a TCP/IP network. The COE-8 consists of two devices, and Transmitter Unit (COE-8I) and a Receiver Unit (COE-8O). The COE-8O has eight relays that will mirror the status of the eight inputs of the COE-8I. Each unit can be monitored and configured from a Web Browser. The COE-8 system also supports SNMP for independent monitoring and control. Up to 4 SNMP managers can be configured to support the COE-8.
NOTE: The COE-8I is sold separately

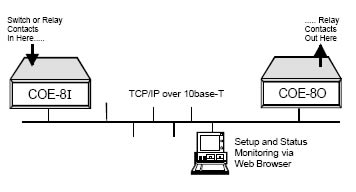

Dataprobe COE-8 Contact Closure Transport over Ethernet Diagram
Dataprobe COE-8O Specifications:
| Mechanical | |
| Height | 1.5 in. (3.81 cm.) |
| Width | 3.25 in. (8.26 cm.) |
| Depth | 5.75 in. (14.61 cm.) |
| Connections | Screw Terminals |
| Control Relay | |
| Current Maximums | 0.5A @ 120VAC or 1A @ 24VDC |
| Switching Power | 60VA Max 50uW Min |
| Switching Voltage | 120VAC or 60VDC Max 1VDC Min |
| Switching Current | 2A Max 1mA Min |
| Resistance | 100 milliohms (initial value) |
| Operations | 5 Million, mechanical. 100K at maximum load |
