Rose CrystalView Mini USB CAT5 Extender
CRK-M2U1V
Save $74.87
The Rose CrystalView CRK-M2U1V system consists of two units, a Local Unit and a Remote unit. The Local unit connects to your CPU using a CPU adapter cable or a KVM switch. The Remote Unit connects directly to the keyboard, video monitor and mouse cables of a KVM station. The Local and Remote Units are connected together with up to 150 feet of industry standard CATx cable. The CRK-M2U1V CrystalView Mini uses a microprocessor to emulate the keyboard and mouse for plug and play operation. The keyboard and mouse on the Remote Unit do not need to be connected for the PC to boot; only the Local Unit must be connected to the PC.
Rose CrystalView CRK-M2U1V Backside
The Rose CrystalView Mini is also available in the following models:
- Dual video (CRK-M2U2V)
- Single video with Serial/Audio (CRK-M2U1V/AUD)
- Dual video with Serial/Audio (CRK-M2U2V/AUD)
Rose CRK-M2U1V Features & Benefits:
- Supports:
- VGA to UXGA video modes
- USB keyboards and mice
- USB peripherals
- Extend a KVM station up to 150 feet away from a CPU using CATx* cable
- Video resolutions up to 1600 x 1200 @75Hz
- Works with any Operating System
- DDC support
- Rackmount kits available
* CATx cable = CAT5, CAT5e, CAT6, or higher

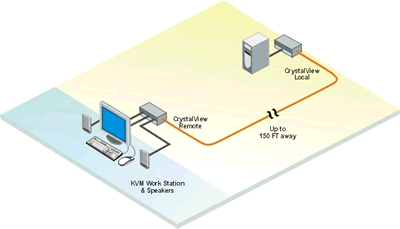

Rose CrystalView CRK-M2U1V Application Diagram
Rose CRK-M2U1V Specifications:
| Mechanical | |
| Height | 1.70 in. (44 mm.) |
| Width | 5.90 in. (150 mm.) |
| Depth | 4.30 in. (110 mm.) |
| Weight | 0.55 lb. (250 gm.) |
| Environmental | |
| Temperature | 32°F - 113°F (0°C - 45°C) |
| Humidity | 0% - 80% non-condensing |
| Video | |
| Resolution | 1600 x 1200 @ 150 feet |
| Compatibility | SVGA, VGA, XGA, RGB |
| Levels | 0.7V p-p |
| Sync type | Separate/composite TTL level |
| Support | |
| Keyboard | USB |
| Mouse | USB |
| Connectors | |
| Video | HD15F |
| USB local | USB B |
| USB remote | 4 port USB A hub |
| Interconnect | CAT5 UTP/STP, EIA/TIA 568 |
| Power | |
| Local | From PC |
| Remote | 5V, 20W external |
| Approvals | CE |
Answer: Thank you for your inquiry. This Rose CrystalView CRK-M2U1V system is, "transparent USB 2.0 compliant for Low/Full speed only. The extender will operate through USB 2.0 Host Controllers at a reduced USB 1.1 speed (12Mb/s). USB 2.0 devices that require the high-speed mode to operate are not compatible with the CrystalView Mini USB."
