ATEN CS1308 8-Port USB/PS2 KVM
CS1308
Save $71.27
The ATEN CS1308 KVM Switch allows direct access and control for 8 computers from a single console (keyboard, mouse, and monitor). Additionally, as many as 8 additional switches can be cascaded, bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. The Aten CS1308 KVM Switch supports both USB and PS/2 connections for the console and computers.
ATEN CS1308 Features:
- One USB-PS/2 console controls 8 computers
- Cascade up to 2 levels - control up to 64 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSyncª - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)

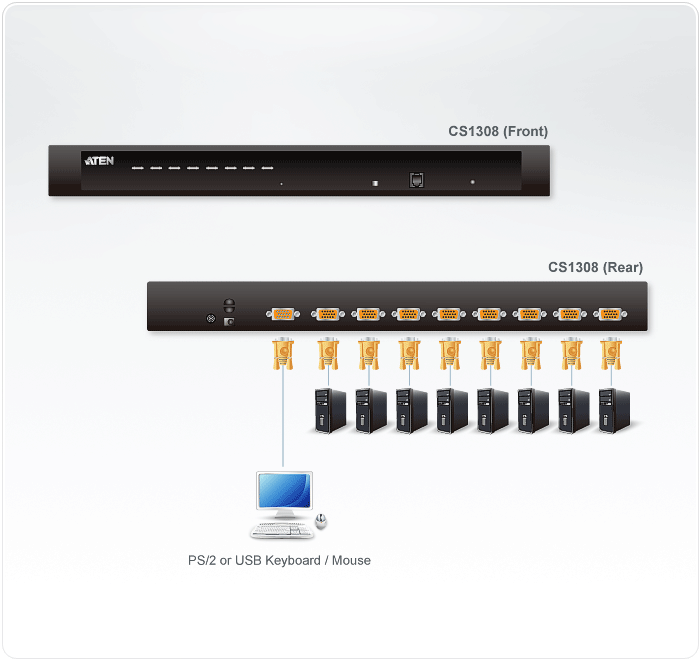

Aten CS1308 8-Port USB/PS2 KVM Switch Diagram
CS1308 Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: Default: [Num Lock] + [-] | Default: [Num Lock] + [-] Release [Port Number] [Enter] | Default: [Scroll Lock] [Scroll Lock] |
| Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] + [F12] Release [Port Number] [Enter] | Alternate: [Ctrl] [Ctrl] |
Aten CS1308 Requirements:
- Console
- A VGA, SVGA, or Multisync Monitor
- USB or PS/2 keyboard and mouse
- Computers
- a VGA, SVGA, or Multisync graphics card with HDB-15 port
- PS/2 Mouse and Keyboard ports, or at least one USB port
Aten CS1308 Package Content:
- 1 CS-1308 KVM Switch with Rack Mount Kit
- 1 Console Cable
- 1 Firmware Updgrade Cable
- 1 Foot Pad set (4 pads)
- 1 Power Adapter
- 1 User Manual
Please note: KVM cables are not included
Aten CS1308 Specifications:
| Mechanical | Unit | |
| Height | 1.73 in. (4.40 cm.) | |
| Width | 6.3 in. (16.00 cm.) | |
| Depth | 17.05 in. (43.30 cm.) | |
| Weight | 4.17 lbs. (1.89 kg.) | |
| Environmental | ||
| Operating Temperature | 32-122 F (0-50 C) | |
| Storage Temperature | -4-140 F (-20-60 C) | |
| Humidity | 0-80% RH, Non-condensing | |
| LEDs | ||
| KVM | 2 (Green) | |
| Port Selection | OSD, Hotkey, Pushbutton | |
| Video Resolution | 2048 x 1536; DDC2B | |
| Power Consumption | DC 5.3V, 5W | |
| Scan Interval | 1-255 Seconds | |
| Supported Hardware | ||
| Emulation | USB, PS/2 keyboard/mouse | |
| Keyboard, Mouse & Monitor | 1 x SPHD-15 | |
| KVM Ports | 8 x SPHD-15 | |
| Firmware Upgrade | 1 x RJ11 | |
| Power | 1 x DC Jack | |
| Standards | ||
| Approved Agency | RoHS | |
The CS1308 is one replacement option for the ACS1208A and ACS1208.
UPC 672792106569
EAN 0672792106569
Question: Are the cables included?
Answer: Thank you for your your inquiry,
The Aten CS1308 ships with a KVM cable for the console that serves as the intermediary between the switch and the connected user station computer. A separate custom KVM cable is required for each source-computer connection. Custom cables of various lengths and interface (USB or PS2) are listed in the Accessories tab. For reference you can find the Cable Connection Diagrams on page 14 of the Aten CS1308 manual.
Aten CS1308 Package Content:
1 CS1308 KVM Switch with Rack Mount Kit
1 Console Cable
1 Firmware Updgrade Cable
1 Foot Pad set (4 pads)
1 Power Adapter
1 User Manual
Question: I want to use 1 keyboard and 1 mouse to control 8 workststions thru kvm. Is it possible with cs1308? I see only vga ports at the rear side. Which cable i need to achieve this?
Answer: Thank you for your inquiry,
You can indeed control 8 work stations / PCs through the CS1308. The rear of the KVM actually uses proprietary all-in-one DB-15 connectors (similar connector to VGA but different pin-out). You would use these all-in-one KVM cable with the KVM which break out from that 1 DB-15 connector into the VGA + PS2 or USB connectors on the other side.
