ATEN 2-Port USB KVMP Switch with Audio Support
CS1732
CS1732 Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: [Num Lock] + [-] | Default: [Scroll Lock] [Scroll Lock] [Port #] [Enter] | Default: None |
| Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] [Ctrl] [Port #] [Enter] | Alternate: None |
ATEN CS1732 2-Port USB KVM Switch with Audio Support
ATEN's CS1732 new 2-port KVM and Peripheral Sharing Switch brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support for Mac, Sun, USB and PS/2. You can save money and space by eliminating the need for multiple monitors, keyboards, mice, and peripheral devices such as printers, scanners, zip drives, and more. Up to 127 different USB devices can be daisy chained from this KVMP switch. Sharing speakers and a microphone also offers extra value and convenience for the users. USB and KVM technology together makes cross-platform management easy. A single USB console can control PCs, Macs, or even Sun workstations, and share peripherals and audio devices between the computers. Any USB-enabled computers, using any USB-compatible operating system, can benefit from the efficiency, expense reduction and convenience of this switch.
ATEN CS1732 2-Port USB KVM Switch Features:
- One console controls two computers and two additional USB 1.1 devices Capable of independent (asynchronous) switching of KVM and peripheral USB ports
- Dual interface - supports computers with PS/2 or USB keyboards and mice Computer selection via front panel switches or Hotkeys Supports PC, Mac, and Sun systems Superior video quality; 2048 x 1536; DDC2B Fully compliant with USB 1.1 specification Firmware upgradeable for life Hi Tech Pure USB KVMP Switch.
- No PS/2 to USB Conversion!
- Audio enabled

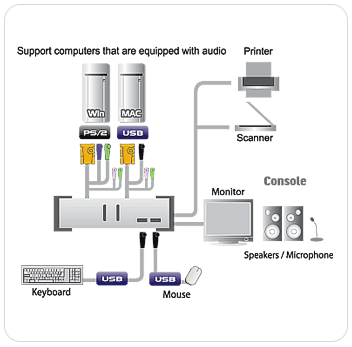

ATEN CS1732 2-Port USB KVM Switch Function Diagram
ATEN CS1732 2-Port USB KVM Switch Requirements: Computers with USB or PS/2 connections (additional cables needed for PS/2 computers, USB peripheral ports won't function when use PS/2 cables) Windows 98, 98SE, ME, 2000, XP Mac OS 8.6 or greater Sun Solaris work station Linux, UNIX and other USB supported systems* *Additional drivers and support may be needed
ATEN CS1732 2-Port USB KVM Switch Package Content:
One 2-port KVMP switch 2 USB KVM bonded cables 1 quick start guide 1 user manual 1 Firmware upgrade cable
ATEN CS1732 2-Port USB KVM Switch Specifications:
| Case | |
| Width | 13.50 in. (34.29 cm.) |
| Height | 12.25 in. (31.12 cm.) |
| Length | 16 in in. (40.64 cm.) |
| Case Qty. | 6 |
| Package Dimensions | |
| Depth | 7 in. (17.78 cm.) |
| Height | 2.25 in. (5.715 cm.) |
| Width | 9.5 in. (24.13 cm.) |
| Computer Connections | |
| Direct | 2 |
| Emulation | |
| Keyboard | USB Plug-n-Play |
| Mouse | USB Plug-n-Play |
| LEDs | |
| On Line | 2 |
| Selected | 2 |
| USB Peripherals | 2 |
| Console Connectors | |
| Monitor | 1 x HDB-15 Female (Std. VGA/SVGA) |
| Keyboard | 1 x USB Type A |
| Audio | 1 x stereo speaker; 1 x Microphone |
| Flash ROM Upgrade | 1 x RJ11 socket |
| Mouse | 1 x USB Type A |
| Power | |
| Amps | 2.1A |
| Voltage | DC 5V |
| Housing | |
| Case | Metal |
| Weight | |
| Package Wt. | 3.15 lbs. (1.42 kg.) |
| Unit Wt. | 0.75 Lb. (0.3375 kg.) |
| Case Wt. | 21.56 Lbs. (9.8 kg.) |
| Dimensions | |
| Depth | 7 in. (17.78 cm.) |
| Width | 9.5 in. (24.13 cm.) |
| Height | 2.25 in. (5.715 cm.) |
| CPU Connectors | |
| Audio | 2 x stereo speaker; 2 x Microphone |
| Keyboard, Mouse, and Monitor | 2 x SPDB15 |
| Peripherals | 2 x USB Type A |
| Scan Interval | 5 sec. |
| Storage Temperature | -20 - 60 C |
| Port Selection | Push button, Hot Keys |
| Operating Temperature | 4 - 40 C |
| Peripheral Sharing | USB, selected through Hotkeys |
| Video Resolution | 2048x1536 (Max.); DDC/ DDC2B/ DDC2AB |
| Humidity | 0 - 80% RH |
| Power Consumption | Bus powered, power adapter for additional power |
