ATEN CS1734B 4-Port USB 2.0 KVMP Switch with OSD and audio
CS1734B
Save $48.33
The ATEN CS1734B is a 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, the CS1734B allows users to access four computers from a single keyboard, monitor, and mouse console. The ATEN CS1734B KVM allows the user to use three methods to obtain instant access to any computer in your installation: Manual, Hotkey, OSD, and mouse.
ATEN CS1734B KVM Features:
- 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls four computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
- Console audio ports on front panel for easy access - ideal for IP phone users
- Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse
- Multiplatform support - Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
- Firmware upgradeable
1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
CS1734B Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: [Num Lock] + [-] | Default: [Num Lock] + [-] + [ ↑ ]or[→]or[ ↓ ]or[←] Right/Left Arrows: Prev and Next Port Up/Down Arrow: Last/First Port/ | Default: [Scroll Lock] [Scroll Lock] |
| Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] + [F12] [Port #] [Enter] | Alternate: [Ctrl] [Ctrl] [Enter] |

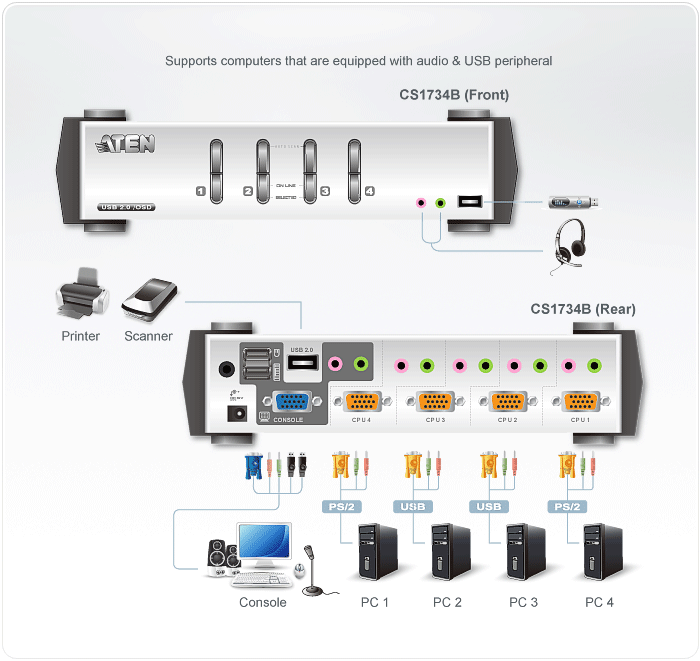

ATEN 4-port USB 2.0 KVMP Switch with OSD
(ATEN CS1734B depicted here)
Aten CS1734B Requirements:
- Console
- A VGA, SVGA, or Multisync monitor
- USB mouse & keyboard
- Computers
- A VGA, SVGA, or Multisync graphics card and port
- USB Type A, or PS/2 keyboard & mouse ports
Aten CS1734B Package Content:
- 1 CS-1734B 4-port USB KVMP Switch
- 4 Custom KVM Cable sets
- 1 USB-to-PS/2 Converter
- 1 Firmware Upgrade Cable
- 1 Power Adapter
- 1 User Manual
Aten CS1734B Specifications:
| Mechanical | ||
| Height | 2.17 in. (5.5 cm.) | |
| Width | 3.43 in. (8.7 cm.) | |
| Depth | 8.27 in. (21.0 cm.) | |
| Weight | 1.70 lbs. (0.55 kg.) | |
| Environmental | ||
| Operating Temperature | 32-122 F (0-50 C) | |
| Storage Temperature | -4-140 F (-20-60 C) | |
| Humidity | 0-80% RH, Non-condensing | |
| LEDs | ||
| On Line / Selected | 4 (Orange) | |
| USB Link | 4 (Green) | |
| Port Selection | OSD; Hotkeys; Pushbuttons; Mouse | |
| Video | 2048 x 1536 @ 60 Hz; DDC2B | |
| Power Consumption | DC 5V, 1.2W | |
| Scan Interval | 1-255 seconds (5 secs. default) | |
| Supported Hardware | ||
| Emulation | PS/2; USB | |
| Keyboard, Mouse & Monitor | 2 x USB Type A 1 x HDB-15 | |
| Audio | 4 x Mini Stereo Jack | |
| KVM Ports | 4 x SPHD015 4 x Mini Stereo Jack (Green) 4 x Mini Stereo Jack (Pink) | |
| Firmware Upgrade | 1 x 4-conductor 3.5mm Jack | |
| Power | 1 x DC Jack | |
| USB Hub | 2 x USB Type A | |
| Standards | ||
| Approved Agency | RoHS | |
UPC 672792112256
EAN 0672792112256
