ATEN 4-Port MasterView Max multiplatform KVM switch
CS1754
Download the
CS1754 Manual (PDF)
ATEN CS1754 4-Port MasterView Max multiplatform KVM switch CS1754 Manual (PDF)
ATEN's CS1754 new 4-port MasterView Max is the ideal tool to help reduce redundant hardware. Four monitors, mice and keyboards are simply too expensive, bulky and inconvenient for most system administrators. Why bother when you can control all 4, or even up to 64 computers with a single keyboard, monitor and mouse. The added audio support allows you to enjoy music while working. Just think of the time, space and money you'll save, and added fun.

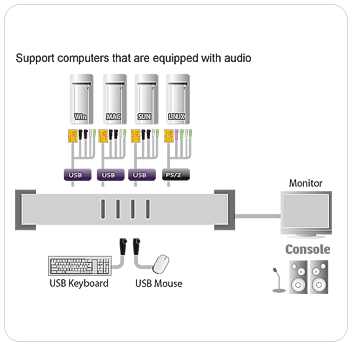

ATEN CS1754 New MasterView Max is much more than a simple four-port KVM switch. The dual interface support allows you to connect both PS/2 and USB computers on the same switch. The multi-platform support allows you to control Windows-based computers, Sun Solaris systems, Linux, or even Macs by a single KVM switch. ATEN extended the multi-platform support by supporting the special keys on both Sun and Mac keyboards.
ATEN CS1754 KVM switch also comes with the ATEN VSE technology, which provides excellent video resolution - up to 2048 x 1536. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while our On Screen Display (OSD) technology allows you to assign a unique name to each computer and access it via a smooth menu-driven interface. With its 1U, 19"rack-mountable casing and status-monitoring LEDs, the MasterView Max is the perfect switch for your server room or any other multi-computer environment.
ATEN CS1754 Features:
- Dual interface support - supports computers with either PS/2 or USB Keyboard and mouse
- Multi platform support - Windows, Mac, and Sun Solaris
- Easy to install - just plug the cables in
- Audio support allows sharing multimedia speakers and MIC phone
- Easy to operate - computer selection via front panel switches, intuitive OSD (on screen display), and Hot Keys
- Security - 2 level password protection for OSD
- Hot Pluggable - both console side and computer side can hot swappable and auto-detect device change
- LED Display for easy status monitoring
- Auto Scan Mode for monitoring all computers
- Complete keyboard emulation for error free booting
- Superior video quality; 2048 x 1536; support DDC2B.
- Total capacity expandable to support 64 computers via 3 levels of cascading
- Supports special keys on Sun and Mac keyboards
- Firmware upgradeable through flash ROM
- Designed for both desktop and rack mount (rack mount kit included)
CS1754 Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: Default: [Num Lock] + [-] | Default: [Num Lock] + [-] Release [Port Number] [Enter] | Default: [Scroll Lock] [Scroll Lock] |
| Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] + [F12] Release [Port Number] [Enter] | Alternate: [Ctrl] [Ctrl] |
ATEN CS1754 Requirements:
- Console:
VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation
USB mouse
USB keyboard - The following equipment must be installed on each computer:
VGA, SVGA or Multisync card
Either a Type-A USB port, or PS/2 mouse and keyboard ports - Cables:
For PS/2 computers, use ATEN part number 2L530XP*
For USB computers, use ATEN part number 2L530XU*
*"X" stands for the length of the cable: "1" is 3 ft "2" is 6ft "3" is 10ft)
ATEN CS1754 Package Content:
1 x 4-port KVM
1 x Power adapter
1 x Rack mount kit
1 x Firmware upgrade Cable
1 x User manual
1 x Quick Start Guide
| Case | |
| Width | 15.0 in. (38.1 cm) |
| Height | 11.0 in. (27.9 cm) |
| Length | 22.0 in. (55.9 cm) |
| Case Qty. | 3 |
| Package Dimensions | |
| Depth | 9.3 in. (23.5 cm) |
| Width | 21.8 in. (55.2 cm) |
| Height | 4.8 in. (12.1 cm) |
| Emulation | |
| Mouse | USB, PS/2 |
| Keyboard | USB, PS/2 |
| LEDs | |
| On Line | 4 (Orange) |
| Selected | 4 (Green) |
| Console Connectors | |
| Microphone | 1xMicrophone |
| Monitor | 1x HDB15 Female |
| Mouse | 1xUSB Type A |
| Audio | 1 x Stereo |
| Flash ROM Upgrade | 1x RJ11 |
| Keyboard | 1 x USB Type A |
| Power | |
| Voltage | 5V DC |
| Housing | |
| Case | Metal |
| Weight | |
| Package Wt. | 8.5 lb. (3.8 kg) |
| Unit Wt. | 6.0 lb. (2.7 kg) |
| Case Wt. | 27.1 lb. (12.3 kg) |
| Dimensions | |
| Depth | 6.0 in. (15.2 cm) |
| Width | 17.0 in. (43.2 cm) |
| Height | 1.8 in. (4.4 cm) |
| CPU Connectors | |
| Audio | 4 x Stereo |
| Keyboard, Mouse, and Monitor | 4 x SPDB15 Female |
| Microphone | 4 x Microphone |
| Video Resolution | 2048 x 1536 @ 60Hz; DDC2B |
| Humidity | 0 - 80% RH |
| Power Consumption | DC 5V 2.75W |
| Scan Interval | 1~255 seconds (5 seconds default) |
| Operating Temperature | 32F~122F (0C~50C) |
| Security | 2-level password security |
| Port Selection | Hot keys, OSD, and push buttons |
| Storage Temperature | -4F~140F (-20C~60C) |
| Computer Interface | USB or PS/2 |
UPC 672792001840
EAN 0672792001840
Question: muon xoa pass cu thi minh lam nhu the nao
Answer: To reset the admin password, use the following procedure (as specified in the user manual pg. 55):
1. Power off the switch.
2. Short the jumper labeled Restore Default Password at the right front of the switches main board. (see diagram in manual pg. 55)
3. Power on switch.
4. Wait a few seconds; power off the switch; and remove the jumper cap.
5. Replace the switches housing and start back up.
6. After restarting, the switch OSD will function the same as the first time run.
Question: mtbf??
Answer: Thank you for your inquiry,
The Aten CS1754 has a confirmed Mean Time Between Failure (MTFB) of 211057.5 hrs.
Please let us know if there is anything else we can help you with, or if you would like any recommendation for your application.
Question: CS1754 EMC conformance?
Answer: Thank you for your inquiry,
See below for the EMC Information you requested for ATEN's CS1754 Series product.
CS1754 + CS1758 CE EU Declaration of Conformity
CS1754 + CS1758 CE EU Verification of Compliance
Please let us know if there is anything else we can help you with!
