CAT5 Audio/Video 64x64 Matrix with RS-232 Control.
CSW64X64S
Save $13,025.75

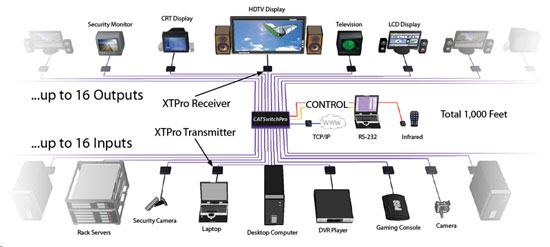

CATSwitch routes audio and video signals from serveral different video sources out to multiple displays and speakers. CATSwitch is capable of connecting to as many as 64 video sources via transmitters and 64 video displays via receivers with a maximum extension of 1000 feet between the transmitter and receiver units.
Applications
- Wall Displays
- Audio Visual Presentation
- Digital Media
- Shopping centers
- Airports
- Security
- Dealer rooms
- Point of Sale
- Control rooms
- Hotels
Features
- Supports high resolution video up to 1920x1200
- High quality audio switching
- Infrared, RS232 and TCP/IP control
- PC Windows software control
- Integral UTP distribution
- 1U rackmounted chassis
- Uses easy to install, inexpensive CAT-5/5e/6/7/8
- Maximum extension of 1,500 feet (500m) between the local and remote units
- HDTV compatible. (720p, 1080i,1080p)
- 300 MHz bandwidth
- Compatible with VGA, XGA, Sun, MAC and SGI
- Sync Format / Polarity Preservation
- Compatible with Line Level Stereo Audio Signals
- High ground loop immunity
- Built-in power surge and transient protection
- Designated trimmer in the remote unit to compensate for length
SmartAVI CATSwitch Specifications
| Input/Output | 64x64 |
| Mechanical | |
| Height | 5.23 in. (13.28 cm) |
| Width | 19 in. (48.26 cm.) |
| Depth | 18 in. (45.72 cm.) |
| Weight | 22 lbs. |
| Video Bandwidth | 250MHz |
| Input Signal Level | 1 Volt pk-pk into 75R |
| Output Impedance | 100 Ohms |
| Input Impedance | 75R OHms |
| Connector | RJ45 |
| Format | VGA/SVG/XGA/RGB |
| Audio Bandwidth | 20KHz |
