CAT5 Audio/Video and RS232 64x16 Matrix with RS-232 Control

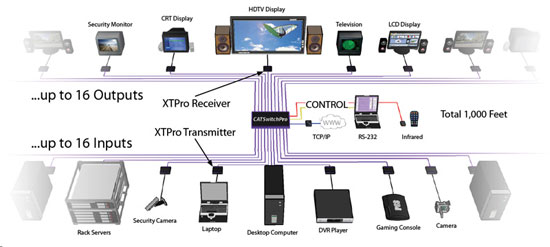

CATSwitchPro routes audio, video, IR and RS/232 signals different video sources out to mulitple displays (projectors, monitors, etc) and speakers. CATSwitchPro is capable of connecting to as many as 16 video sources via transmitters and 16 video displays via receivers with a maximum extension of 1,000 feet between the transmitter and receiver units.

Applications

• Corporate or educational presentations
• Financial (remote servers/user control)
• Call center for technical support
• Industrial (long range workstation isolation)
• Airport installations (air traffic control/passenger information)
• KVM extension where exceptional quality of signal is crucial
• Medical (remote operation away from sensitive/magnetic equipment)
• Recording (for large studios where editing/mixing stations are compact and/or require complete silence)

Features

• Supports high resolution video up to 1920x1200
• High quality audio switching
• Infrared, RS232 and TCP/IP control
• Pass-through IR and RS-232 for remote device control
• PC Windows software control
• Integral UTP distribution
• 1U rackmounted chassis
• Uses easy to install, inexpensive CAT-5/5e/6/7/8
• Maximum extension of 1,500 feet (500m) between the local and remote units
• HDTV compatible. (720p, 1080i,1080p)
• 300 MHz bandwidth
• Compatible with VGA, XGA, Sun, MAC and SGI
• Sync Format / Polarity Preservation
• Compatible with Line Level Stereo Audio Signals
• High ground loop immunity
• Built-in power surge and transient protection
• Designated trimmer in the remote unit to compensate for length

SmartAVI CATSwitchPRO Specifications
