Simply plug the CV100KM into any computer and its onboard microprocessor emulates an actual keyboard and mouse! Operate and boot normally with or without a real keyboard and mouse connected.

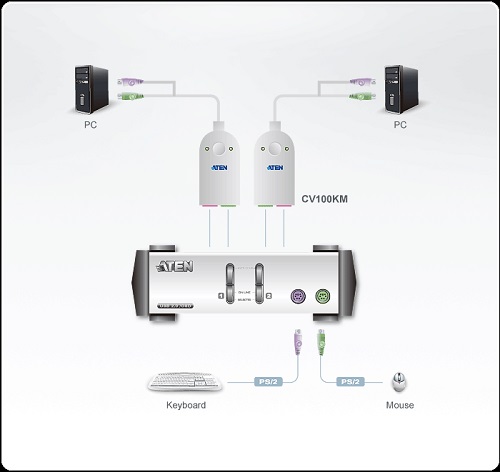

Diagram
Features:
- Ends computer lockup due to loss of KVM focus
- Prevents computer damage from keyboard failure
- Hotplugging of keyboard and mouse
- Keyboardless boot and run
- Non-powered - uses computer's keyboard power source
- OS Support: Windows 2000, Windows XP, Linux, FreeBSD
Specifications:
| Connectors | |
| Keyboard | 6-pin Mini-DIN Male (Purple) |
| Mouse | 6-pin Mini-DIN Male ( Green ) |
| Environment | |
| Operation Temperature | 32~ 122F [0°~50°C] |
| Storage Temperature | -4~140°F [-20°~60°C] |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Unit Weight | .2 lbs |
| Housing | Plastic |
| Dimensions | 3.2 x 2.2 x 0.9 in. (8.20 x 5.50 x 2.30 cm) |
| LED's | |
| Link | 2 Green |
UPC 672792151453
EAN 0672792151453
Question: how do i ad this to the cart for purchase?
Answer: Thank you for your inquiry,
This page for the CV100KM should now be fixed and addable to the cart. Apologies for the inconvenience.
Answer: Thank you for your inquiry,
This page for the CV100KM should now be fixed and addable to the cart. Apologies for the inconvenience.
