ATEN MasterView SUN to PS/2 Console Converter
CV130
ATEN MasterView SUN to PS/2 Console Converter (CV130)
ATEN's CV130 is an interface converter that translates signals from a PS/2 keyboard, mouse and monitor to regular SUN workstations' keyboard, mouse and monitor signals. ATEN CV130 fully supports ATEN's existing MasterView KVM switches and console extender products. When used with a KVM switch, you may control IBM PS/2 PCs, Mac computers and Sun Stations from one keyboard, mouse and monitor. You may also use the ATEN CV130 with ATEN's console extender which will allow you to control your Sun workstation from a remote keyboard, mouse and monitor.
ATEN MasterView (CV130) Features:
- Supports hot plug for PS/2 keyboards and mice DIP switch to select display mode
- DIP switch to select screensaver mode
- No power adapter needed

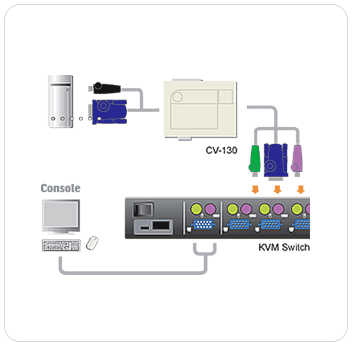

ATEN MasterView (CV130) Function Diagram
ATEN MasterView (CV130) Package Content:
1 CV130 Console Converter 1 User Manual
ATEN MasterView (CV130) Specifications:
| Case | |
| Width | 13.75 in. (34.925 cm.) |
| Height | 14.75 in. (37.465 cm.) |
| Length | 20 in. (50.8 cm.) |
| Case Qty. | 20 |
| Package Dimensions | |
| Width | 6.5 in. (16.51 cm.) |
| Height | 2.25 in. (5.715 cm.) |
| Length | 9.5 in. (24.13 cm.) |
| Console Connectors | |
| Mouse | PS/2 |
| Keyboard | PS/2 |
| Monitor | HDB15 Female |
| Weight | |
| Case Wt. | 16.75 Lb. (7.5375 kg.) |
| Package Wt. | 0.5 lbs. (0.225 kg.) |
| Unit Wt. | 0.35 Lb. (0.1575 kg.) |
| Dimensions | |
| Width | 3.2 in. (8.128 cm.) |
| Length | 4 in. (10.16 cm.) |
| Height | 1.25 in. (3.175 cm.) |
| CPU Connectors | |
| Keyboard & Mouse | Mini Din 8 Female |
| Monitor | 13W3 Female |
| Storage Temperature | -20 C - 60 C |
| Power Consumption | DC 5V, 50 mA (max) |
| Operating Temperature | 5 C - 40 C |
| Humidity | 0% - 80% (RH) |
