Sun Console Converter

CV130B

$74.95
FREE Shipping on orders over $100

CV130B is a signal converter specifically designed for SUN systems. They can be used with KVM switches. Both models have SUN-supported built-in 13W-3 video out and Mini Din-8 keyboard and mouse ports.

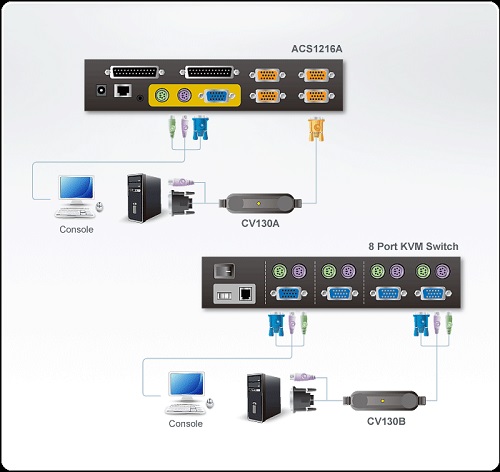

Diagram

diagram

Features:

  • Compatible with Sun systems
  • Compatible with ATEN or ALTUSEN SPHD* or PS/2 equipped KVM switches
  • Translates PS/2 keyboard, mouse, and VGA signals to legacy Sun keyboard, mouse and monitor signals
  • High quality molded connectors
  • Composite sync video support
  • Supports PS/2 mice and Microsoft Intellimouse
  • External power adapter not required
  • Supports 1600 x 1200, maximum video resolutions including Sun specific: 1152 x 900
  • *Compatible with SPHD PS/2 and Combo products only.

Specifications:

Connectors (PS/2)
Keyboard  13W3 Female
Monitor  Mini Din 8 Female
VGA (HDDB-15) Female
Environment
 Operation Temperature  32F~122F (5C~40C)
 Storage Temperature -4F~140F (-20C~60C)
 Humidity  0-80% RH, Non-condensing
Physical Properties
Unit Weight .9 lbs
Dimensions  3.2 x 1.3 x 4.0 in.

Power Consumption  DC 5V, 50 mA (max)
