ATEN Sun console converter for USB w/cable
CV131B
ATEN CV131B Sun USB Console Adapter
ATEN's CV131B is an interface converter that translates PS/2 keyboard, mouse and monitor signals to a USB SUN workstation's keyboard, mouse and monitor signals. The CV131B fully supports ATEN's existing MasterView KVM switches and console extender products. When used with a KVM switch, you may control IBM PS/2 PCs, Mac computers and Sun Stations from one keyboard, mouse and monitor. You may also use CV131B with ATEN's console extender which will allow you to control your Sun workstation from a remote keyboard, mouse and monitor.
ATEN CV131B Sun USB Console Adapter Features:
- Console and PC cables molded in
- Translates PS/2 keyboard, mouse and VGA signals to SUN USB keyboard, mouse and monitor signals
- Compatible with ATEN's SPHD(Special High Density) equipped KVM switches
- Compatible with SUN USB system
- Composite sync video support
- Keyboard language selection via simple hotkeys
- Supports PS/2 mice and Microsoft Intellimouse
- Supports 1600 x 1200, maximum video resolutions including Sun specific: 1152 x 900

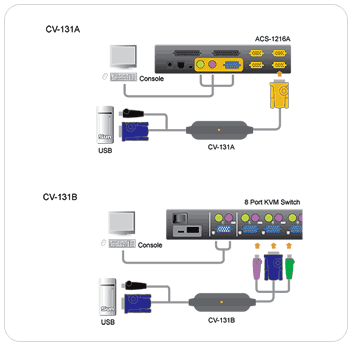

ATEN CV131B Sun USB Console Adapter Function Diagram
ATEN CV131B Sun USB Console Adapter Requirements:
Sun Blade Server 2000/100 (Sun Solaris 8) ATEN KVM with
ATEN CV131B Sun USB Console Adapter Package Content:
1 x CV131A USB Sun Converter
1 x User Manual
ATEN CV131B Sun USB Console Adapter Specifications:
| Mechanical | |
| Height | 0.91 in. (2.31 cm.) |
| Width | 1.7 in. (4.20 cm.) |
| Depth | 4.19 in. (10.65 cm.) |
| Weight | 0.52 lb. (0.24 kg.) |
| Cable Length | 6 ft. (1.8 m.) |
| Housing | Plastic |
| Environmental | |
| Operating Temperature | 0 ~50°C |
| Storage Temperature | -20 ~60°C |
| Humidity | 0~80% RH, Non-condensing |
| Video | 1600 x 1200 |
| Console Connectors | 1 |
| Connectors to SUN | |
| Keyboard/Mouse | 1 x USB Type A Male (Black) |
| Video | 1 x HDB-15 Male (Blue) |
| Connectors to Switch | |
| Keyboard | 1 x 6-pin Mini-DIN Male (Purple) |
| Video | 1 x HDB-15 Female (Blue) |
| Mouse | 1 x 6-pin Mini-DIN Male (Green) |
| LEDs | |
| Power | (1) Orange |
| Emulation | |
| Keyboard/Mouse | Sun |
