Avocent Emerge DA1200D DVI-D Distribution Amplifier
DA1200D
The Avocent Emerge DA1200D DVI-D distribution amplifier with HDCP is a compact, high performance product designed to meet the most demanding requirements for the distribution of DVI signals with HDCP copy protection. The DA1200D distribution amplifier provides transparent distribution of a DVI-D signal to two destinations. The unit has DVI-I connectors for the input and outputs for compatibility with all DVI cables. The DA1200D distribution amplifier may be cascaded to deliver DVI with HDCP signals over greater distances from the source using premium grade DVI cable. DDC support offers plug-and-play operation.

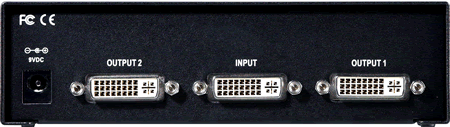

Avocent Emerge DA1200D Backview
Avocent Emerge DA1200D Features:
- Supports Resolutions up to 1920 x 1200
- Unit Supports Cascading for Greater Flexibility
- Fully HDCP Compliant
- Supports all HDTV Resolutions
- Dual DVI Outputs

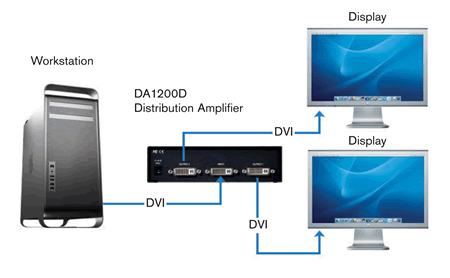

Avocent Emerge DA1200D Application Diagram
Avocent Emerge DA1200D Specifications:
| Mechanical | |
| Height | 1.65 in. (42 mm.) |
| Width | 6.00 in. (153 mm.) |
| Depth | 3.00 in. (75 mm.) |
| Weight | 1.0 lbs. (0.45 kg.) |
| Environmental | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity | 10% to 85% (Non-condensing |
| Power (External Power Supply) | 9VDC@1.3A |
| Performance | |
| HDTV Resolutions | 480i, 480p, 720p, 1080i, 1080p |
| Maximum Display Resolution | 165 MHz (UXGA) |
| Maximum Resolution | 1920 x 1200@60Hz |
| Maximum Cable Distance (Outputs) | 32 ft (10 m) using premium grade DVI cable |
| I/O Connectors | |
| DVI Destination Port Connectors | (2) DVI-I 29 pin female/td> |
| Input Port Connector | (1) DVI-I 29 pin female |
| Standards | |
| Switcher Unit | FCC, CE |
| Power Supply | UL, CE, CSA |
| Warranty | 2 years |
