1U Rackmount Monitor Drawer 19" LCD, Sun function keys, w/SUN Native LCD resolution
D119Se
Save $103.00

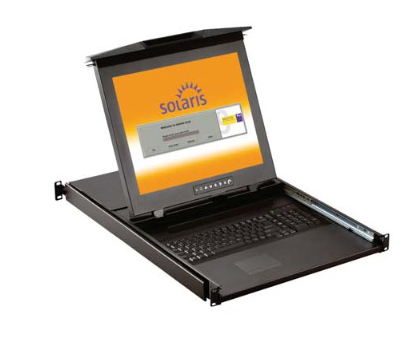

The DS119 19 inch Rackmount LCD is a combination of keyboard, mouse and monitor into a drawer with features such 1U design, adjustable brackets, built in LCD OSD to provide effective assistance for an administrator to control PC system.
S217 Features:
- 1U 19" TFT LCD screen
- Allow viewing through closed glass cabinet door
- The screen will sync with most SUN resolution
- 1280 x 1024 native graphic resolution
- Compatible with SUN, Apple, IBM, DELL, HP and USB server
- 104-key SUN-compatible keyboard w/ trackpad supports SUN keys, including Stop, Cut, Paste, Compose, etc.
- Adjustable mounting brackets compatible with SUN rack depths of 24 to 36 inch
- All mounting hardware included
S217 Specifications:
| Mechanical | |
| Height | 1.73 in. (4.4 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 25.6 in. (65.0 cm.) |
| Weight | 29.0 lbs. (13.2 kg.) |
| Package Dimensions | |
| Height | 5.5 in. (14.0 cm.) |
| Width | 23.4 in. (59.5 cm.) |
| Depth | 33.9 in. (86.0 cm.) |
| Weight | 41.8 lbs. (19.0 kg.) |
| Environmental | |
| Operation Temperature | 0 to 50 Degree Celsius |
| Storage Temperature | -5 to 65 Degree Celsius |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 5A) |
| Rear I/O Connector | Console port, HD15 female DC power input, Plug-round type |
| General | |
| Form Factor | 1U rack mounting, separate slide-out screen & keyboard |
| Color | Black on LCD panel, Black on keyboard drawer |
| Compatibility | Compatible with SUNs, IBMs, HPs, DELLs and Mix PCs with USB-enable |
| Support Platform | Solaris, MS Windows 2000/XP, Linux and SCO Unix |
| Server-side Interface | HD15 VGA, USB Type A for KB/MS |
| Rack Mounting | Adjustable ranges from 15.3" to 33.2" (390 to 845mm) |
| LCD Screen | |
| Manufacturer/Type | AUO |
| Display Size | 19" inch diagonal |
| Resolution | 1280 x 1024 |
| Display color | 16.7 M |
| Brightness | 250cd/m2 |
| Contrast Ratio | 1000:1 |
| Response Time | TR=2/ Tf=6 ms |
| Pixel Pitch | 0.264 (H) x 0.264 (V) mm |
| Viewing Angle | 170°x160° |
| Signal Input | VGA, DVI-D |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language |
| LCD MTBF | 50,000 hrs |
| Input Device | |
| Keyboard | 104-key USB keyboard with built-in SUN keys [Including stop, cut, paste, compose, copy and help] |
| Mouse | Trackpad |
| Standards | |
| EMC Approved | FCC, CE, cUL, RoHS2, REACH |
