Avocent DSR1020 KVM Over IP Switch
DSR1020-001
The Avocent DS Series 16-port Avocent DSR1020 KVM over IP switch provides BIOS-level control of all connected servers and serial-based devices in your data center. For easy access to your network devices, the Avocent DSR1020 KVM Over IP Switch (DSR1020-001) includes a USB port, the ability to remotely power cycle connected devices and external modem support when the network is down. DSView 3 management software, with hub and spoke architecture, provides failover authentication. Users authenticate to a central management server (the hub) or one of 15 mirror servers (the spokes). SNMP and IPMI support are also provided.

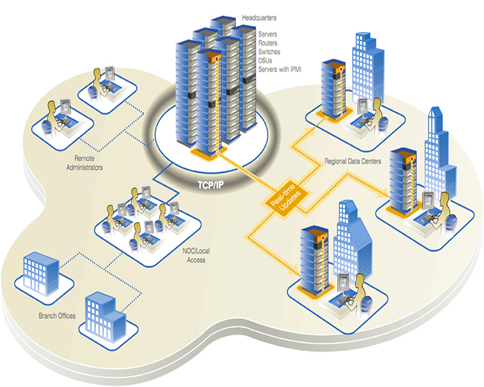

Avocent DSR1020 KVM Over IP Switch (DSR1020-001) Diagram
Avocent DSR1020 KVM Over IP Switch (DSR1020-001) Features and Benefits:
- Compact, KVM over IP appliance integrates KVM, an external modem and power control in one solution
- Includes a USB local port
- High-resolution video with the Dambrackas Video Compression (DVC) algorithm
- Local and remote access for at the rack and remote data center management
- Required login at the local port for increased security
- Provides access to an unlimited number of servers or serial devices, no matter their location
- DSView 3 management software, with hub and spoke architecture, provides failover authentication
- Includes 16 configurable ports for maximum flexibility when connecting to servers or serial devices
- Offers IT administrators the ability to dial into a remotely located server or serial device
- Remotely reboot the server to the BIOS level or even power cycle remote devices -- all from a single DSView 3 software interface
- Uses the same management interface for the data center and the branch offices
- Built on patented, field-proven KVM over IP technology
- Designed for multi-platform servers, including PS/2, Sun and USB
- DSView advanced security includes audit logs and the ability to assign individual user rights
Avocent DSR1020 KVM Over IP Switch (DSR1020-001) Specifications:
| Mechanicall | |
| Height | 1.72 in. (4.47 cm) |
| Width | 17.00 in. (43.18 cm |
| Depth | 11.98 in. (27.98 cm) |
| Weight | 7.3 lbs. (3.31 kg) without cables |
| Environmental | |
| Operating Temperature | 32 to 104 degrees F (0 to 40 degrees C) |
| Storage Temperature | -4 to 158 degrees F (-20 to 70 degrees C) |
| Power | |
| Operating Voltage | 100 to 240 VAC |
| Power Frequency | 50 - 60 Hz Auto Sensing |
| Input | 40W maximum |
| Supported Hardware | |
| Computers | PS/2, Sun, USB |
| Monitor | VGA, SVGA (XGA, XGA-II with adaptor), Maximum Local Port: 1600 x 1280, Maximum Remote Port using a DSRIQ module: 1280 x 1024 @ 75 Hz |
| Peripherals | PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), IBM Scrollpoint, Logitech Mouseman+, Logitech Marble Plus, Logitech Marble FX and Kensington Expert mouse |
| Standards | |
| Approved Agency |  UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST |
