Raritan Dominion SX4 4-Port Console Server
DSX4
The Raritan Dominion DSX4 is a single-feed AC power, 4-port secure console server with 2 console ports. The DSX4 console server provides remote access to serially managed servers and other network devices anytime and anywhere via any Web browser. Up to 4 devices-including servers, routers, switches, VPNs and power strips-can be accessed and controlled via Dominion SX4. It is scalable for hundreds of users and thousands of devices. It's easy to install simple to use, secure and scalable.
With the Raritan DSX4, you get one point of control to manage users, serial servers and other IT devices including:
- Servers & Headless Servers: Sun Solaris, Sun Cobalt, HP-UX, UNIX, Linux Servers, IBM/AIX Servers, Windows 2003 Servers
- WAN Equipment: ISDN Terminal Adapters, Channel Banks, CSU/DSU, PBS/PABX
- Networking Equipment: Routers, Ethernet Switches, Ethernet Firewalls, Ethernet Load Balancers
- Power Control: All serially controlled power strips and UPS

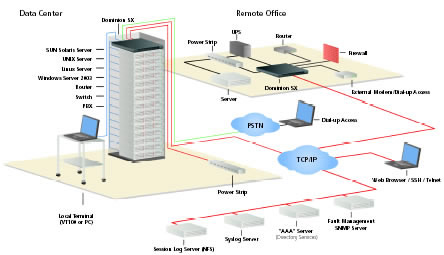

Dominion SX Installation Diagram
Raritan Dominion SX Features and Benefits:
- Intelligent auto-failover on dual-LAN models
- Single appliance - No additional software
- Access via web browser/SSHv2/Telnet
- Standard built-in modem
- RADIUS, LDAP, LDAP/S, TACACS+ and Microsoft Active Directory support
- Local console port for at the rack access
- Secure appliance - user has no access to operating system
- Local and remote buffering/logging
- Broadest range of supported browsers: IE, Firefox, IE
- SecureChat allows up to 10 users per port to collaborate with 128-bit SSL encryption
- Dynamically resizable VT100 windows with dynamic font-resizing
- Allows the connection of multiple disparate servers running SUN Solaris, HP-UX, AIX, Linux, Windows Server 2003, and UNIX-based servers
- HTML implementation- reduces the time to load the Java applet in a browser implementation to less than one minute
- Full modern CLI- GUI equivalence
- IPMI support- Allows for discovery and management of IPMI enabled servers
- Port keyword monitor and alert
- VT220/320/ANSI Support
- NFS logging
- Single IP Address for administration and target connection
DSX Security & Authentication:
- Fully featured firewall
- Man In The Middle (MITM) attack mitigation
- TCP port addressing for Telnet and SSHv2
- Local user groups
- Flexible strong password support
- Customizable login & consent banner
- Enhanced encryption options
- Support provided for the RADIUS, LDAP, TACACS+, Kerberos V.5 and Active Directory
- Primary and secondary servers are supported
- User defined and installable security certificates
- Target server disconnection option
- Disabling authentication and authorization
- Disable local authentication option
- SSL with RC4 encryption
- User ID and Password
Raritan DSX4 Specifications:
| Mechanical | |
| Height | 1.75 in. (44 mm.) |
| Width | 11.34 in. (288 mm.) |
| Depth | 10.7 in. (270 mm.) |
| Form factor | 1U, rack mountable (brackets not included) |
| Weight | 4.61 lbs. (2.08 kg.) |
| Ports | |
| Serial ports | 4 |
| Environmental | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Humidity | 20% - 85% RH non-condensing |
| Altitude | Operates properly at any altitude between 0 to 10,000 feet |
| Power | 110/220V auto-switching: 50-60 Hz; 36-72V DC |
| Remote Connection | |
| Network | 10/100 Ethernet (RJ45) port - one or two |
| Protocols | TCP/IP, PPP, PAP, HTTP, HTTPS, SSL, SSH, TACACS+, LDAP(S), RADIUS, SNMP |
| Modem Connectivity | Dedicated Modem Port |
| Approvals | CE, FCC Part 15 Class A, US and Canadian UL, VCCI-A |
