Raritan Dominion Dual-feed AC power, 32-port secure console server
DSXA-32-DLM
The Raritan DSXA-32-DLM is a Dual-feed AC power, dual-Ethernet 32-port secure console server with internal modem, 1 console port and a 19" rack mount kit. The Dominion DSXA-32-DLM is a secure console server for local and remote access to serially managed servers and other serial devices via SSH/Telnet and Web browser. Dominion SX allows access and control of up to 32 devices including: servers, routers, switches, VPNs and power strips. It can scale across hundreds of users and thousands of devices, highly secure, easy to install and simple to use.
The DSXA-32-DLM provides one point of control to manage users, serial servers and other IT devices including:
- Servers & Headless Servers: Sun Solaris, Sun Cobalt, HP-UX, UNIX, Linux Servers, IBM/AIX Servers, Windows 2003 Servers
- WAN Equipment: ISDN Terminal Adapters, Channel Banks, CSU/DSU, PBS/PABX
- Networking Equipment: Routers, Ethernet Switches, Ethernet Firewalls, Ethernet Load Balancers
- Power Control: All serially controlled power strips and UPS

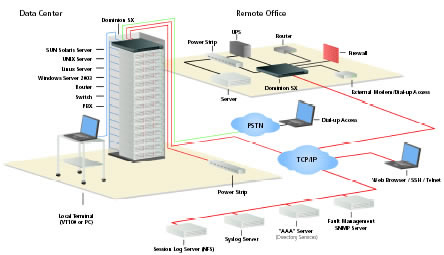

Dominion Console Server Installation Diagram
Raritan Dominion SX Features and Benefits:
- Intelligent auto-failover on dual-LAN models
- Single appliance - No additional software
- 256KB port buffer
- Access via web browser/SSHv2/Telnet
- Standard built-in modem
- RADIUS, LDAP, LDAP/S, TACACS+ and Microsoft Active Directory support
- Local console port for at the rack access
- Secure appliance - user has no access to operating system
- Local and remote buffering/logging
- Broadest range of supported browsers: IE, Firefox, IE
- SecureChat allows up to 10 users per port to collaborate with 128-bit SSL encryption
- Dynamically resizable VT100 windows with dynamic font-resizing
- Allows the connection of multiple disparate servers running SUN Solaris, HP-UX, AIX, Linux, Windows Server 2003, and UNIX-based servers
- HTML implementation- reduces the time to load the Java applet in a browser implementation to less than one minute
- Full modern CLI- GUI equivalence
- IPMI support- Allows for discovery and management of IPMI enabled servers
- Port keyword monitor and alert
- VT220/320/ANSI Support
- NFS logging
- Single IP Address for administration and target connection
DSX Security & Authentication:
- Fully featured firewall
- Man In The Middle (MITM) attack mitigation
- TCP port addressing for Telnet and SSHv2
- Local user groups
- Flexible strong password support
- Customizable login & consent banner
- Enhanced encryption options
- Support provided for the RADIUS, LDAP, TACACS+, Kerberos V.5 and Active Directory
- Primary and secondary servers are supported
- User defined and installable security certificates
- Target server disconnection option
- Disabling authentication and authorization
- Disable local authentication option
- SSL with RC4 encryption
- User ID and Password
Raritan DSXA-32-DLM Specifications:
| Mechanical | |
| Height | 1.75 in. (44 mm.) |
| Width | 17.25 in. (438 mm.) |
| Depth | 11.34 in. (288 mm.) |
| Form factor | 1U, rack mountable (mounting brackets included) |
| Weight | 10 lbs. (4.53 kg.) |
| Environmental | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Humidity | 20% - 85% RH non-condensing |
| Altitude | Operates properly at any altitude between 0 to 10,000 feet |
| Power | 110/220V auto-switching: 50-60 Hz; 36-72V DC |
| Remote Connection | |
| Network | 10/100 Ethernet (RJ45) port - one or two |
| Protocols | TCP/IP, PPP, PAP, HTTP, HTTPS, SSL, SSH, TACACS+, LDAP(S), RADIUS, SNMP |
| Modem Connectivity | Integrated 56K V.90 (RJ11 port) |
| Standards | |
| Approved Agency | CE, FCC Part 15 Class A, US and Canadian UL, VCCI-A |
UPC 785813605030
EAN 0785813605030
Question: i am trying to configure the ip address, i am having trouble , can't seem to ping the default ip
Answer: Thank you for your inquiry. Unfortunately, due to the varied nature of user environments, detailed product support is beyond the scope of this FAQ.
Raritan has put together a fairly detailed support section for the Dominion SX console server line based on firmware version. Visit the page at: http://www.raritan.com/support/dominion-sx/ and open the node for your version.
The online help section for the most recent version can be found here: http://www.raritan.com/help/SX/v3.3.0/en/index.htm#5034.
Question: Can you connect a rollover cable from a network device console port directly to this Raritan?
Answer: Thank you for your inquiry. Yes, this unit can be connected directly to the serial console ports of network devices. A number of adapters are available to accomplish this. Here is specific information found in the Raritan SX quick setup guide:
"Important: Many Cisco and Sun devices have server ports with non-standard RJ-45 connections. Most can be connected to the SX with a "serial rollover cable." This is NOT a standard Ethernet cable or crossover Ethernet cable. If you have misplaced the rollover cable that came with your Cisco or Sun device, you can purchase one from Raritan (Part Number CRLVR-15 or CRLVR-1)."
Question: Please tell me the ECCN for this product
Answer: Thank you for your inquiry. The ECCN is 5A992.
