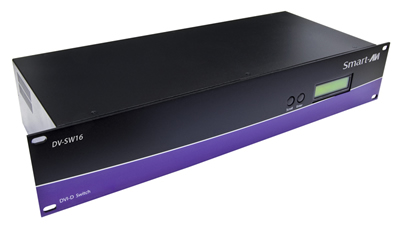

SmartAVI Cross-platform DVI-D Switch, 16 Port
DV-SW16S
Save $176.40
The SmartAVI DV-SW16 is a cross-platform DVI-D switch capable of sharing one DVI-D Monitor between sixteen computers, PC or Mac. View sixteen computers equipped with DVI-D on a single screen, saving money and desktop space.

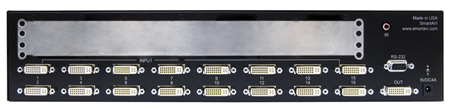

SmartAVI DVI-D Switch Back View
SmartAVI DV-SW16 Features:
- Supports Mac, PC. Linux and Sun DVI-D
- Supports High Resolution 1920x1200 60 Hz WUXGA
- Uses universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Output DVI up to 20 feet
- Front panel switch with LED indicator
- Saves space on your desktop
- Includes: DV-SW16 & PS5VD4A
Applications Examples:
- Home Theater Integration
- Digital Signage Deployment
- Information Kiosks/Displays
- Film/Recording Studios

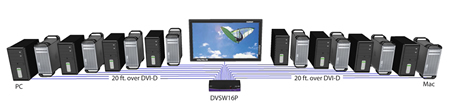

SmartAVI DVI-D Switch Application Diagram
SmartAVI DV-SW16 Specifications:
| Mechanical | |
| Height | 3.5 in. (88.9 mm.) |
| Width | 17 in. (432 mm.) |
| Depth | 6.75 in. (171.45 mm.) |
| Weight | 10 lbs. (5 kg.) |
| Power | External 5VDC2A |
| Control | RS-232, IR and Front Panel |
| Video | |
| Format | DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input Interface | (16) DVI-D 29-pin female |
| Output Interface | (1) DVI-D 29-pin female |
| Resolution | Up to 1920 x 1200 @ 60Hz |
| DDC | 5 volts p-p(TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Standards | |
| Approved Agency | UL, CE, ROHS Compliant |
UPC 813280017138
EAN 0813280017138
Question: are the 16 cables included?
Answer: Thank you for your inquiry. This DVI-D switcher doesn't come with DVI-D cables. The package includes the 16x1 DVI-D switch, a power supply and 1 user manual.
Question: Good morning, 2 questions: 1. How I ca switch the Ports? 2. Which operating-system have inside? Is possible to programming this switch?
Answer: Thank you for your inquiry,
DV-SW16 Port Switching: Front panel buttons, IR Remote (PN IR-EYE), or RS-232 serial
DV-SW16 OS Compatibility: PC or Mac. *The DV-SW16 works as a switcher device so the unit it self does not have a OS installed.
By programming do you mean keyboard hotkey shortcuts? The DV-SW16 does not support hotkey switching.
If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
Answer: Thank you for your inquiry. This DVI-D switcher doesn't come with DVI-D cables. The package includes the 16x1 DVI-D switch, a power supply and 1 user manual.
Question: Good morning, 2 questions: 1. How I ca switch the Ports? 2. Which operating-system have inside? Is possible to programming this switch?
Answer: Thank you for your inquiry,
DV-SW16 Port Switching: Front panel buttons, IR Remote (PN IR-EYE), or RS-232 serial
DV-SW16 OS Compatibility: PC or Mac. *The DV-SW16 works as a switcher device so the unit it self does not have a OS installed.
By programming do you mean keyboard hotkey shortcuts? The DV-SW16 does not support hotkey switching.
If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
