SmartAVI Cross-platform DVI-D Switch, 16 Port, USB 2.0 & Audio
DVN-16PS
Save $286.79
The SmartAVI DVN-16P is a cross-platform KVM capable of sharing a DVI Monitor, USB 2.0 Keyboard, USB 2.0 Mouse, Stereo Audio and IR between two computers. It is RS-232 and Infrared compliant, capable of being controlled remotely via software.
In the medical or industrial field, where it may not be practical (or safe) to have one or more CPUs in the general vicinity, SmartAVI's DVI Switch Series is the perfect solution, allowing for either PC or Mac signals to be extended from computer to monitor (20 feet from computer to DVI Switch, and then 20 feet from DVI Switch to remote monitor/display point).

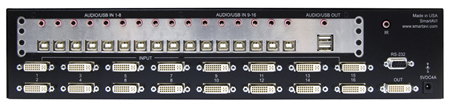

SmartAVI DVI-D Switch Back View
SmartAVI DVN-16P Features:
- Supports Mac, PC, Linux and Sun DVI
- Supports High Resolution 1920x1200 60Hz WUXGA
- Uses universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 Devices (Flash Drives, Printers, Cameras, Scanners, etc.)
- Supports USB 2.0 keyboard and mouse
- Balanced stereo audio output
- Front panel tactile switch with LED indicator
- Full IR and RS-232 control
- Includes: DVN-16P & PS5VD2A
Applications Examples:
- Home Theater Integration
- Digital Signage Deployment
- Information Kiosks/Displays
- Film/Recording Studios
SmartAVI DVI-D Switch Application Diagram
SmartAVI DVN-16P Specifications:
| Mechanical | |
| Height | 3.5 in. (88.9 mm.) |
| Width | 17 in. (432 mm.) |
| Depth | 6.75 in. (171.45 mm.) |
| Weight | 10 lbs. (5 kg.) |
| Environmental | |
| Operating Temperature | 32-131°F (0-55 °C) |
| Storage Temperature | -4-185 °F (-20-85 °C) |
| Humidity | Up to 95% |
| Power | External 100-240 VAC/5VDC2A @10W |
| Control | |
| Front Panel | Tact Switch |
| RS232 | Via Software @ 9600 bps |
| IR | Via Remote Control with IR-EYE Type 3 |
| Video | |
| Format | DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input Interface | (16) DVI-D 29-pin female |
| Output Interface | (1) DVI-D 29-pin female |
| Resolution | Up to 1920 x 1200 @ 60Hz |
| DDC | 5 volts p-p(TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Audio | |
| Frequency Response | 20 Hz to 20 KHz |
| Impedance | 600 ohm |
| Nominal Level | 0-1.0V |
| Common Mode | Rejection at 60dB |
| Input Interface | (16) 3.5mm Stereo Audio |
| Output Interface | (1) 3.5mm Stereo Audio |
| USB | |
| Signaling | USB 2.0, 1.1 and 1.0w/Internal Hub |
| Input Interface | (16) USB Type B |
| Output Interface | (2) USB Type A |
| Emulation | NO KEYBOARD OR MOUSE EMULATION |
| Standards | |
| Approved Agency | UL, CE, ROHS Compliant |
UPC 813280017206
EAN 0813280017206
