SmartAVI 16-Port DVI-D KVM Switch w/USB 2.0 & Audio
DVN-16PROS
Save $330.95
With SmartAVI's DVN-16PRO KVM switch, a user can now manage up to 16 different computers from a single DVI-D screen and USB keyboard and mouse. In addition, DVN-16PRO enables immediate hotkey source switching through full USB keyboard and mouse emulation. The SmartAVI DVN-16PRO uses single link connectors providing high resolutions of up to 1920x1200 with zero pixel loss from TMDS signal correction.
The DVN-16PRO has a broad range of applications, but the main function of this KVM switch is to centralize the access of several computers into one comprehensive PC. Not only does it function as a KVM console, it also supports full USB keyboard and mouse emulation plus audio and USB 2.0 switching. This allows a user to control various USB 2.0 devices that would otherwise be unavailable with conventional KVM devices. For example, it allows a user to use sophisticated USB devices such as printers, cameras, and scanners without having to directly plug into the remote computer. DVN-16PRO is a perfect solution for the medical or industrial field for instance, where it may not be practical or safe to have one or more CPUs in the general vicinity.

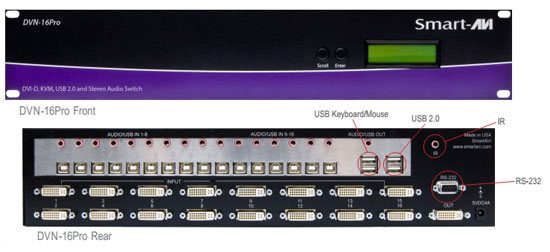

SmartAVI DVN-16PRO Switch Connections
SmartAVI DVN-16PRO Features:
- Supports Windows, Mac, Linux, and Sun DVI-D
- Source switching through USB keyboard and mouse emulation hotkeys
- Supports High Resolution1920x1200 60Hz WUXGA
- Front panel tactile switch with LCD display for local control
- Universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 Devices
- Balanced stereo audio output
- RS-232 commands for remote control
- Continuous DDC learning and correcting
- Automatically recognizes keyboard settings from previous use
- Constant USB keyboard and mouse driver support for selected and unselected ports
- DVN-16PROS incliudes [1 x DVNET-16Pro: 16x1 DVI-D, USB 2.0, Audio KVM Switch;
1 x PS5VDC4A: Power Supply; 1 x User Manual]
Applications Examples:
- Server Collocation
- Digital Signage
- Education
- Airports
- Dealer Rooms
- Control Rooms
- Audio/Visual Presentations
- Shopping Centers
- Hotels/Resorts

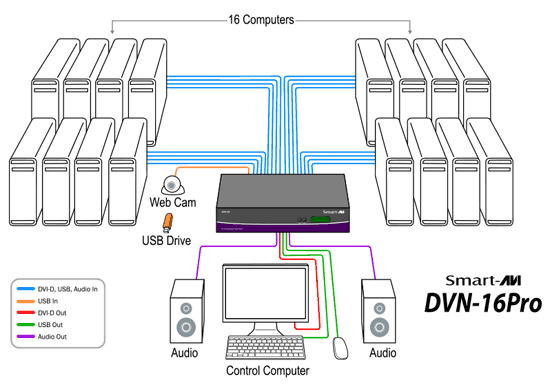

SmartAVI DVN-16PRO DVI-D Switch Application Diagram
SmartAVI DVN-16PROS Specifications:
| Mechanical | |
| Height | 3.5 in. (88.9 mm.) |
| Width | 17 in. (432 mm.) |
| Depth | 6.75 in. (171.45 mm.) |
| Weight | 10 lbs. (5 kg.) |
| Environmental | |
| Operating Temperature | 32-131°F (0-55 °C) |
| Storage Temperature | -4-185 °F (-20-85 °C) |
| Humidity | Up to 95% |
| Power | External 100-240 VAC/5VDC4A @20W |
| Control | |
| Front Panel | Tactile Switch, Display: LCD 2 x 20 Character |
| RS232 | Via Control @ 115200 bps |
| Hotkeys | Via Keyboard |
| IR | RC5 |
| Video | |
| Format | DVI-D Single Link, DVI 1.0 |
| Maximum Pixel Clock | 165 MHz |
| Input Interface | (16) DVI-D 29-pin |
| Output Interface | (1) DVI-D 29-pin |
| Resolution | Up to 1920 x 1200 @ 60Hz |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Data Rate | 1.65 Gbps per color |
| Audio | |
| Frequency Response | 20 Hz to 20 KHz |
| Impedance | 600 ohm |
| Nominal Level | 0-1.0V |
| Common Mode | Rejection at 60dB |
| Input Interface | (16) 3.5mm Stereo Audio |
| Output Interface | (1) 3.5mm Stereo Audio |
| USB | |
| Signaling | USB 2.0, 1.1 and 1.0 w/Internal Hub |
| Input Interface | (16) USB Type B |
| Output Interface | (2) USB 1.1 Type A for KVM Devices (2) USB 2.0 Type A Transparent |
| Emulation | Keyboard and Mouse |
| Standards | |
| Approved Agency | UL, CE, ROHS Compliant |
The DVN-16PROS is also known as the DVN-16PRO-S.
UPC 813280020978
EAN 0813280020978
Answer: Thank you for your inquiry. There does not appear to be a Firmware upgrade available for this switch, and unfortunately, due to the varied nature of user environments, detailed product support is beyond the scope of this simple FAQ.
Having said that, here are a few things to try. First check to make sure the USB mouse and keyboard are connected to the right-hand ports. The 2 ports on the right side are dedicated for keyboard and mouse emulation and it may be necessary for the mouse and keyboard to be attached to the right-hand side to function properly. If the mouse is is attached to a USB port on the right, the mouse itself may have an issue. Make sure the mouse itself is operating properly by connecting directly to a target machine.
If these ideas do not help, please contact a KVM Switches Online representative directly at 1-877-586-6654. Having bought the switch on our site, they should be able to provide further assistance.
