SmartAVI DVN-4Duo-DL: 4-Port Dual-Head, Dual-Link DVI-D KVM Switch
DVN-4DUO-DLS
The SmartAVI DVN-4Duo-DL is a 4-Port Dual-Display, Dual-Link DVI-D KVM Switch with USB 2.0 Sharing and Audio.
The DVN-4Duo-DL DVN-4Duo-DL is a dedicated multi-platform KVM switch capable of managing up to four different dual head dual-link computers through two DVI-D monitors, one USB keyboard & mouse, a single set of speakers and a USB 2.0 Device. The USB emulation technology utilized by DVN-4Duo-DL enables immediate hotkey source switching through a remote USB keyboard and mouse. DVN-4Duo-DL uses dual-link connectors providing high resolutions of up to 2560x1600 (@60Hz) or up to 1920x1200 (@60Hz) for single-link connections.
DVN-4Duo-DL Features:
- Supports Mac, PC, Linux and Sun Mac OS, Sun OS, Unix
- Supports dual-link resolutions up to 2560x1600 (@60Hz) and single-link resolutions up to 1920x1200 (@60Hz)
- Uses universal DVI Dual-Link connectors
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 Devices
- Control Sun, Mac or PC computers from a common KVM console
- Compatible with all major software including Windows, Linux, Mac OS, Sun OS, Unix
- Rack mountable in a standard 19 inch rack
- Flash upgradeable firmware
- Front panel keys for selecting users and channels manually
- Supports USB keyboard and mouse
- Balanced stereo audio output
- RS-232 control for remote control
- Optional TCP/IP control
- Hot-key commands for quick channel selection.
- Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on the other or scan a document and save in another computer.
- Complete keyboard emulation for error free booting

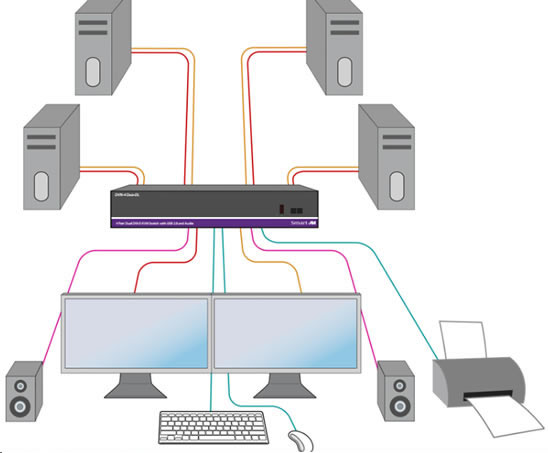

SmartAVI DVN-4Duo-DLS Application Diagram
*Note: SmartAVI DVN-4Duo-DLS (DVN-4Duo-DL System) Package Includes: DVN-4Duo-DL & PS5VDC4A power supply.
SmartAVI DVN-4Duo-DLS Specifications:
| Video | |
| Format | DVI-D Dual-Link, DVI 1.0 |
| Maximum Pixel Clock | 330 Mbps |
| Input Interface | (8) DVI-D 29-pin |
| Output Interface | (2) DVI-D 29-pin |
| Resolution | Dual-link up to 2560 x 1600 (@60Hz) or single-link up to 1920x1200 (@60Hz) |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Data Rate | 1.65 Gbps per color |
| Audio | |
| Input Interface | (4) 3.5 mm Stereo Audio |
| Output Interface | (1) 3.5 mm Stereo Audio |
| Impedance | 600 Ohm |
| Frequency Response | 20 Hz to 20 kHz |
| Nominal Level | 0-1.0 V |
| Common Mode | Rejection at 60 dB |
| USB | |
| Signal Type | USB 2.0, 1.1, and 1.0 w/ internal hub |
| Input Interface | (4) USB Type B |
| Output Interface | (2) USB 1.1 Type A for KVM Devices (2) USB 2.0 Type A Transparent |
| Control | |
| Front Panel | Tactile Switch, with Seven Segment Display |
| RS-232 | Via Control @ 115200 bps |
| Hot Keys | Via Keyboard |
| Other | |
| Power | External 100-240 VAC/ 5VDC4A @ 20W |
| Dimensions | 2.5"H (1U) x 6.4"D x 12.5"W |
| Weight | 3.2 lbs. |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temp. | 32 to 131 F (0 to 55 C) |
| Storage Temp. | .-4 to 185 F (-20-85 C) |
| Humidity | Up to 95% |
| Emulation | Keyboard and Mouse |
UPC 813280020985
EAN 0813280020985
