4-Port DVI-D KVM Switch with USB 2.0 Sharing
DVN-4ProS
DVN-4Pro is a dedicated multi-platform KVM switch capable of managing up to 4 different computers through a single DVI-Dmonitor, USB keyboard & mouse, a single set of speakers and a USB 2.0 Device.The USB emulation technology utilized by DVN-4Pro enables immediate hotkey source switching through a remote USB keyboardand mouse. DVN-4Pro uses single link connectors providing high resolutions of up to 1920x1200 with zero pixel loss from TMDSsignal correction.
SmartAVI DVN-4ProS Features:
- Supports Mac, PC, Linux and Sun Mac OS, Sun OS, Unix
- Supports High Resolution 1920x1200 60Hz WUXGA
- Uses universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 Devices
- Control Sun, Mac or PC computers from a common KVM console
- Compatible with all major software including Windows, Linux, Mac OS, Sun OS, Unix
- Rack mountable in a standard 19 inch rack
- Flash upgradeable firmware
- Front panel keys for selecting users and channels manually
- Supports USB keyboard and mouse
- Balanced stereo audio output
- Full IR and RS-232 control for remote control
- Optional TCP/IP control
- Hot-key commands for quick channel selection.
- Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on the other or scan a document and save in another computer.
- Complete keyboard emulation for error free booting
- Superior video quality - 1920 x 1200 @ 60 Hz
Applications Examples:
- Server Collocation
- Digital Signage
- Education
- Airports
- Dealer Rooms
- Control Rooms
- Audio/Visual Presentations
- Shopping Centers
- Hotels/Resorts
- KVM Switches

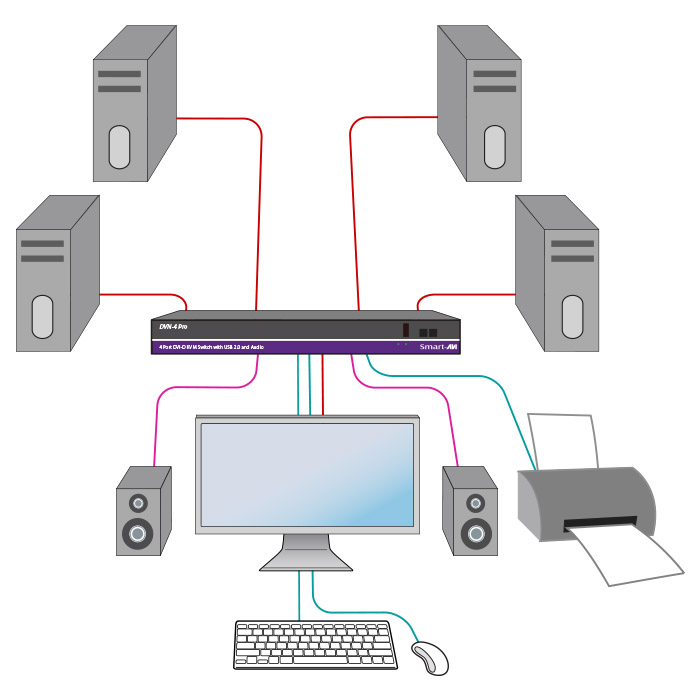

SmartAVI DVN-4ProS Diagram
SmartAVI DVN-4ProS Specifications:
| Mechanical | |
| Height | 1.7 in. |
| Width | 12.5 in. |
| Depth | 6.4 in. |
| Weight | 3 lbs. |
| Environmental | |
| Operating Temperature | 32-131°F (0-55 °C) |
| Storage Temperature | -4-185 °F (-20-85 °C) |
| Humidity | Up to 95% |
| Power | External 100-240 VAC/5VDC4A @20W |
| Control | |
| Front Panel | Tactile Switch, Display: LCD 2 x 20 Character |
| RS232 | Via Control @ 115200 bps |
| Hotkeys | Via Keyboard |
| IR | RC5 |
| Video | |
| Format | DVI-D Single Link, DVI 1.0 |
| Maximum Pixel Clock | 165 MHz |
| Input Interface | (4) DVI-D 29-pin |
| Output Interface | (1) DVI-D 29-pin |
| Resolution | Up to 1920 x 1200 @ 60Hz |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Data Rate | 1.65 Gbps per color |
| Audio | |
| Frequency Response | 20 Hz to 20 KHz |
| Impedance | 600 ohm |
| Nominal Level | 0-1.0V |
| Common Mode | Rejection at 60dB |
| Input Interface | (4) 3.5 mm Stereo Audio |
| Output Interface | (1) 3.5 mm Stereo Audio |
| USB | |
| Signaling | USB 2.0, 1.1 and 1.0 w/Internal Hub |
| Input Interface | (4) USB Type B |
| Output Interface | (2) USB 1.1 Type A for KVM Devices (2) USB 2.0 Type A Transparent |
| Emulation | Keyboard and Mouse |
| Standards | |
| Approved Agency | UL, CE, ROHS Compliant |
UPC 813280017268
EAN 0813280017268
