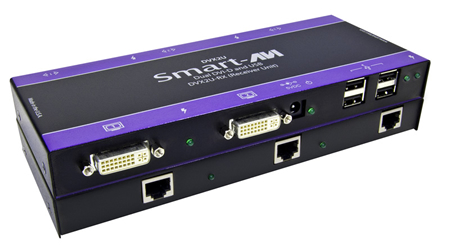

SmartAVI DVX-2U CAT6 STP Transmitter; supports Dual DVI-D and USB

DVX-2U-TXS

$450.00

Discontinued
For upgrade or replacement options: Contact Us

The SmartAVI DVX-2U-TXS is a CAT6 STP Transmitter. It supports Dual DVI-D and USB; It includes: DVX-2U-TX and PS5VD4A.

The DVX2U is the perfect solution for extending dual DVI-D displays and USB 1.1 devices to a remote location. It extends DVI-D and USB 1.1 signals to a remote location up to 275 feet away.

SmartAVI DVX-2U-TXS Features:

  • DDC from internal table for Mac/PC
  • Supports Mac, PC, and Linux DVI
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Supports all USB 1.1 Devices Transparently (Flash Drives, Printers, Cameras, Scanners, etc.)
  • Supports USB 1.1 keyboard and mouse

SmartAVI DVX-2U-TXS Applications:

  • Medical Applications
  • Industrial Work Areas
  • Home Theater Integration
  • Digital Signage Deployment
  • Information Kiosks/Displays
  • Film/Recording Studios


SmartAVI DVX-2U-TXS Application Diagram

SmartAVI DVX-2U-TXS Application Diagram

 SmartAVI DVX-2U-TXS Specifications:

Mechanical
Width 8.25 in. (21 cm.)
Height 1.0 in. (2.5 cm.)
Depth 3.5 in. (8.9 cm.)
Weight 1.0 lb. (0.5 kg.)
Video
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (TX) (2) DVI-D 29-pin female
Output Interface (RX) (2) DVI-D 29-pin female
Resolution Up to 1920x1200@60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20ft.
Output Cable Length Up to 20ft.
USB
Signal Type USB 1.1
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
Power External 100-240 VAC/5VDC4A @ 20W
Environmental
Operating Temperature 0-55 °C (32-131°F)
Storage Temperature -20-85 °C (-4-185 °F)
Humidity Up to 95%

*Please note that some of these specifications include the receiver information also.
