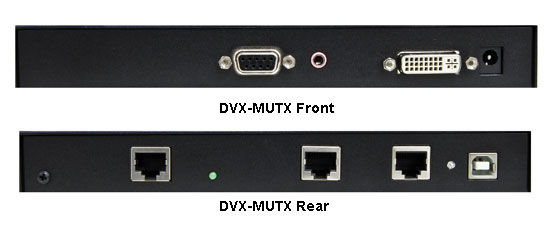

DVI-D/RS232/USB/AUDIO CAT6 Transmitter
DVX-MUTX

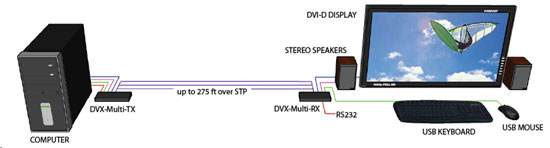

SmartAVI's DVX-Multi extends DVI-D, RS232, USB 1.1 and Audio up to 275 feet over 3 STP Cables.
*This is the Transmitter only.
Applications
- Medical Applications
- Industrail Work Areas
- Home theater Integration
- Digital Signage Deployment
- Information Kiosks/Displays
- Film/Recording Studios
Features
- Top image quality at all resolutions
- Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
- Distance: 275 feet with 3 CAT6 STP cables
- Compatible with all operating systems
- Compatible with all major KVM switches
- Rack mount options (19)
- Supports USB 1.1 keyboard and mouse
- Uses easy-to-install, inexpensive pair cable
- Data recovery for digital video
- Fully-compliant with USB 1.1 specifications
- Supports 1.5 and 12Mbps data rates
- External power adaptors for transmitter and receiver units
- Fully-transparent (does not use any emulation)
- Plug-and-play
SmartAVI DVX-MURX Transmitter Specifications
| Mechanical | |
| Height | 1 in. (2.54 cm) |
| Width | 7.5 in. (19.05 cm.) |
| Depth | 3.5 in. (8.89 cm.) |
| Weight | 1 lbs. |
| Video Format | DVI-D Single Link |
| Video Input Interface | (1) DVI-D 29-pin-female |
| Video Output Interface | (1) DVI-D 29-pin female |
| Resolution | Up to 1920x1200 @ 60Hz |
| DDC | 5 Volts p-p (TTL) |
| Audio Frequency | 20 Hz to 20 KHz |
| Audio Impedance | 600 ohm |
