Raritan Dominion XRO, 4 Serial Ports, 3 KVM Ports KVM Solution

The Raritan Dominion XRO solutions are a combination of the Dominion SX and Dominion KX101 switches. The Raritan DXRO-43 is the 4 serial port and power control port DSX and (3) 1-port DKX101 switch.  The DSX switch packs secure, out-of-band, remote KVM access and control, serial device control and power control in a 1U form factor. The DXRO enables remote management of servers, headless Servers, LAN and WAN equipment, serially controlled power strips, telecom equipment, anything likely to be found in a small office or branch office server closet. Unlike software-based in-band solutions, the Raritan XRO's out-of-band capability assures device access even if the OS fails or the network is down. A built-in modem provides emergency access if the network or internet is down.

Dominion DXRO-43 KVM-over-IP access is enabled by single-user, single-port devices connected to each target server. With a dedicated channel to each server, the risk of blocking inherent in switched KVM architectures is eliminated. Serial-over-IP access at each site is provided via a 1U, rack-mounted component.  When the Raritan DXRO is deployed with Raritan's CommandCenter Secure Gateway centralized management appliance, hundreds of remote sites can be consolidated into a single logical network, with access via a single sign-on to a single IP address, to streamline administration, security and regulatory compliance reporting.

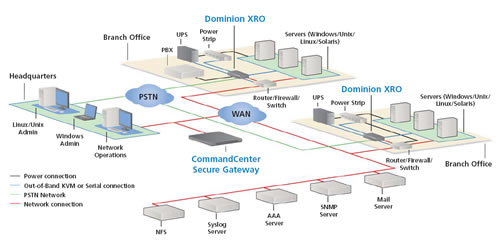

Raritan Dominion DXRO-43 Diagram

Raritan DXRO-43 Features & Benefits:

• Appliance-based architecture for "Plug and Play" operation (no software required)
• Built-in modem
• Dedicated power control port
• Local port for rack access
• Supports multiple hardware platforms (PS/2, Sun and USB servers)
• 128 Bit Encryption - SSH & SSL
• Single, consolidated view of all IT devices (when deployed with CC-Secure Gateway)
• Single sign-on
• Idle Timeout and Session Disconnect

Raritan DXRO-43 Specifications:
