NTI Mini Server Environment Monitoring System
ENVIROMUX-MINI
The NTI Mini Server Environment Monitoring System (ENVIROMUX-MINI) monitors critical environmental conditions (such as temperature, humidity, and water leakage) that could destroy network components in your server room. When a sensor exceeds a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts and a visual indicator (red LED).
NTI ENVIROMUX-MINI Features & Applications:
- Monitor and manage server room environmental conditions over IP
- Sensors supported:
- 2 temperature/humidity sensors
- 1 liquid detection sensor
- 4 open-collector input devices
- Alerts are posted in message log, which is accessible through Web user interface.
- Flexible Zero-RU mounting.
- Mounting tabs included.
- Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.

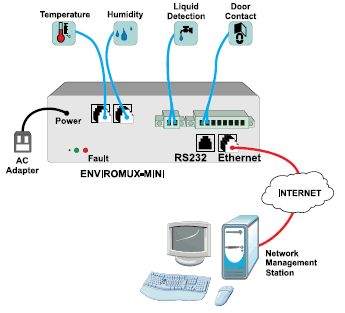

NTI ENVIROMUX-MINI Application Diagram
NTI ENVIROMUX-MINI Kit Includes:
-
NTI ENVIROMUX-MINI
-
1- 120VAC or 240VAC at 50 or 60Hz-5VDC/2.0A AC Adapter
-
2-10-32 x 3/8" pan head screws and 10-32 nuts (server cabinet mounting hardware)
-
1- DB9 Male-to-RJ45 Female adapter
-
CD containing a pdf of this manual, pdf of a Quick Installation Guide, Discovery Tool, and an SNMP MIB file
-
Printed Quick Installation Guide
-
2- Mounting tabs for Zero-RU mounting
NTI ENVIROMUX-MINI Specifications:
Mechanical | |
Height | 2 in. (5.08 cm.) |
Width | 5.6 in. (14.22 cm.) |
Depth | 2 in. (5.08 cm.) |
Environmental | |
Operating Temperature | 32°F to 100°F (0°C to 38°C) |
Storage Temperature | -20°F to 140°F (-30°C to 60°C) |
Relative Humidity | 17 to 90% non-condensing RH |
Power | 110 or 220 VAC at 50 or 60 Hz via AC adapter. |
Inputs/Ports | |
Temperature/Humidity | Two female RJ45 connectors for connecting temperature sensors, humidity sensors and/or combined temperature/humidity sensors. |
Water Detection Cable | 1 screw terminal pair for connection liquid detection sensor. Output voltage: +5V DC. Current limited to 10mA Maximum contact resistance: 500K Ohm. |
Ethernet Port | One female RJ45 connector with LEDs. 10 BaseT Ethernet interface. |
RS232 Port | One female RJ45 connector. Supports 3-wire interface (Tx, Rx and GND) Used for flash upgrades (includes DB9F-RJ45F adapter). |
Standards | |
Regulatory Approval | CE, FCC |
