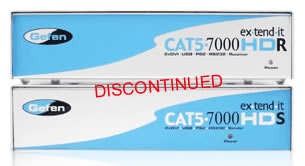

Gefen CAT5 7000HD DVI USB KVM Extender
EXT-CAT5-7000HD
The Gefen EXT-CAT5-7000HD extender sends two digital video displays plus accompanying peripherals away from the computer so you can operate in silence or locate your CPU in a separate and secure location. It supports DVI displays, USB or PS/2 keyboard/mouse, RS-232 for serial communication systems, two audio devices and an additional microphone port. Industry standard CAT-5e cables are used to connect your computer to the remote devices at distances up to 150 feet. High definition digital resolutions up to 1920 x 1200 are supported.

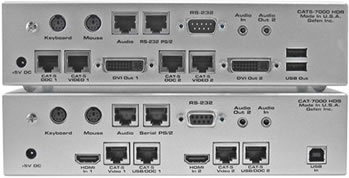

Gefen EXT-CAT5-7000HD Receiver & Sender Backside
How the Gefen EXT-CAT5-7000HD works:
The EXT-CAT5-7000HD sender connects to your computer with the supplied cables. The receiver connects to your DVI displays and peripherals - up to 150 feet away. Multiple CAT-5 cables connect the sender (computer) and receiver (peripherals) to each other.
*Note: For distances over 100 ft. shielded CAT-5 cable for video is recommended for optimal video quality. The DDC CAT-5 cable does not need to be shielded.

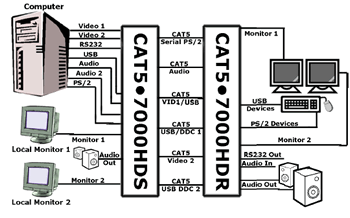

Gefen EXT-CAT5-7000HD Diagram
Gefen EXT-CAT5-7000HD Features:
- Uses CAT-5* cable for DDC and control signals
- Extends two DVI (digital visual interface) compliant devices up to 150 feet
- Saves space on your desktop and increases productivity
- Eliminates computer noise where you work
- Supports VESA Standard resolutions and HDTV resolution
- Supports DDWG standard for DVI compliant monitors
- Installs in minutes
Gefen EXT-CAT5-7000HD Package Includes:
- the EXT-CAT5-7000HD-S
- the EXT-CAT5-7000HD-R
- Two 6 foot DVI to HDMI Cables
- Two 6 foot PS/2 Cables
- One 6 foot USB Cable
- One 6 foot Audio Cable
- One 5V Power Supply
- User manual
Gefen EXT-CAT5-7000HD Specifications:
| Mechanical | |
| Height | 2 in.(5.08 cm.) |
| Width | 8.4 in. (21.33 cm.) |
| Depth | 4.4 in. (11.17 cm.) |
| Shipping weight | 7 lbs. (3.17 kg.) |
| Power | |
| Supply | 5V DC (External) |
| Consumption | 15 Watts (max) |
| Connectors | |
| Video HDMI Input Connector | 19 pin Type A |
| Video DVI Output Connector | DVI-I (29 pin) female, Supports ONLY Digital Signals |
| Link Connector | RJ-45 |
| PS/2 Keyboard Connector | 6 Pin MiniDin |
| PS/2 Mouse Connectorss | 6 Pin MiniDin |
| RS232 Connector | DB-9 |
| USB Input | USB type "B" Connector |
| USB Output | Two USB type "A" connectors |
| Bandwidth | |
| Video Amplifier Bandwidth | 1.65 GHz |
| Signal | |
| Input Video Signal | 1.2 Volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Single Link Range | 1080P/1920 x 1200 |
