Gefen CAT5 9500HD Extender
EXT-CAT5-9500HD
The Gefen EXT-CAT5-9500HD sends your digital video display plus accompanying peripherals away from your computer so you can operate in silence or locate your CPU in a safe and secure location. The EXT-CAT5-9500HD supports one DVI digital display, four USB devices and/or PS/2 keyboard/mouse, RS-232 for serial communication systems and two audio devices.

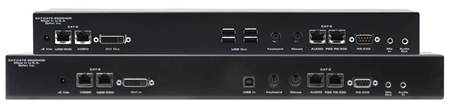

Gefen CAT5 Extender Backside
The EXT-CAT5-9500HD sender connects to your computer with the supplied cables. The receiver connects to your DVI displays and peripherals - up to 200 feet away. Multiple CAT-5 cables connect the sender (computer) and receiver (peripherals) to each other. The EXT-CAT5-9500HD is HDCP compliant.
*Note: For distances over 100 ft. shielded CAT-5e cables are recommended for optimal video quality.
Gefen EXT-CAT5-9500HD Features:
- Extends any DVI (Digital Visual Interface) compliant devices up to 200 feet from the computer
- Also extends USB 1.1, PS/2, RS232, and audio devices up to 200 feet from the computer
- Uses four CAT-5e cables
- Uses CAT-5e cable for DDC and control signals
- Supports VESA Standard resolutions and HDTV resolution
- Supports DDWG standard for DVI compliant monitors
- Video is transmitted digitally for zero signal loss
- HDCP Compliant
- Installs in minutes
Gefen EXT-CAT5-9500HD Package Includes:
- EXT-CAT5-9500HD-S
- EXT-CAT5-9500HD-R
- One 6 foot DVI Cable
- Two 6 foot PS/2 Cables
- One 6 foot USB Cable
- One 6 foot Audio cable
- One 5V Power Supply
- User's Manual
Gefen EXT-CAT5-9500HD Specifications:
| Mechanical | |
| Height | 1.75 in. (4.45 cm.) |
| Width | 17 in. (43.18 cm.) |
| Depth | 4.375 in. (11.11 cm.) |
| Shipping Weight | 10 lbs. (4.54 kg.) |
| Connectors | |
| DVI Connector | DVI-I (29 pin) female (Digital Only) |
| Link Connector | RJ-45 |
| RS232 Connector | DB-9 |
| PS/2 Keyboard | 6 Pin MiniDin |
| PS/2 Mouse | 6 Pin MiniDin |
| Power | |
| Supply | 5V DC (External) |
| Consumption | 20 Watts (max) |
| Signal | |
| Input Video | 1.2 volts p-p |
| Input DDC | 5 volts p-p (TTL) |
| Video Amplifier Bandwidth | 1.65 Gbps |
| Single Link Range | 1080P/1920 x 1200 |
| USB Input | USB type "B" Connector |
| USB Output | Two USB type "A" connectors |
Question: I have the gefen 9500 HDS but i'm looking for R box and power supply. Can even be used. Mine was lost or lifted during an office move.
Answer: Thank you for your inquiry. The power supply for this discontinued extender is in stock and available. Gefen may have a receiver left, they are checking and will get back to us. We will contact you directly with a quote and purchasing information when we hear back from Gefen.
Answer: Thank you for your inquiry. The power supply for this discontinued extender is in stock and available. Gefen may have a receiver left, they are checking and will get back to us. We will contact you directly with a quote and purchasing information when we hear back from Gefen.
