Gefen Component Video Extender, up to 330 ft
EXT-COMP-141N
The Gefen EXT-COMP-141N Component Extender allows users to extend Component video signals beyond the A/V rack. The Component Extender Series can be used to extend a Component signal to cover the distances up to 330 feet. Industry standard Category 5e (CAT-5e) cable is used for the extension.
How it works:
The Component Extender sender resides next to the TV source. With the supplied Component cable, the Component Extender sender is connected to the source. The Component Extender receiver is then placed next to the monitor or projector. Industry standard Category 5e (CAT-5e) cable is used to link the Component Extender sender and Component Extender receiver together.
Gefen EXT-COMP-141N Back View
Gefen EXT-COMP-141N Features:
- Extends Component video up to 330 feet
- Power only required only on transmitter.
- Plug & Play installation.
- One CAT5 Cable for extension.
- No Loss of Quality.
Package Includes:
- Component Extender sender unit
- Component Extender receiver unit
- 5V DC power supply
- Component Cable
- User's Manual

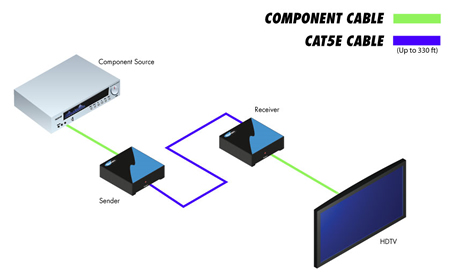

Gefen Component Video Extender Wiring Diagram
Gefen EXT-COMP-141N Specifications:
| Mechanical | |
| Height | 1.25 in. (3.18 cm.) |
| Width | 2 in. (5 cm.) |
| Depth | 3.75 in. (9.53 cm.) |
| Shipping Weight | 3 lbs. (1.4 kg.) |
| Power | |
| Supply | 5 VDC (External) |
| Consumption | 5 Watts (Max.) |
| Input Signal | |
| Video | 1.2 Volts p-p |
| Sync | 5 Volts p-p (TTL) |
| Frequency Range | |
| Horizontal | 15-70 KHz |
| Vertical | 30-170 Hz |
| Video | |
| In | YPbPr |
| Out | YPbPr |
| Video Amplifier Bandwidth | 120MHz |
| Link Connector | RJ-45 |
