Gefen Composite Video Extender
EXT-COMPOSITE-141N
The Gefen EXT-COMPOSITE-141N is a Composite Video Extender which extends composite video and audio up to 1000 feet (300 meters) over one CAT-5 cable. The sender unit connects to any component video source using the supplied composite cable. The receiver unit connects to your composite video display up to 1,000 feet away. One CAT-5e cable is used to connect the sender to receiver for perfect video extension. The Composite Video Extender can extend either 3 composite video signals or 1 composite video signal plus 2 audio.

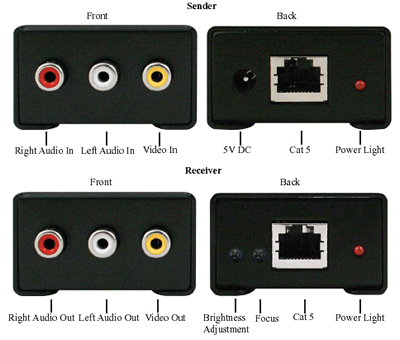

Gefen Composite Video Extender Side Views
Gefen EXT-COMPOSITE-141N Features:
- Supports up to 480i composite video
- Supports analog L+R audio
- Power only required only on transmitter
- Plug & play installation
- Equalizations for different CAT-5 skews
- One CAT-5 cable for extension
Gefen EXT-COMPOSITE-141N Package Includes:
- Comp/Audio Extender S
- Comp/Audio R
- 1x 5v DC Power Supply
- 1x 3 RCA Cable
Gefen EXT-COMPOSITE-141N Specifications:
| Mechanical | |
| Height | 1.25 in. (3.17 cm.) |
| Width | 2 in. (5 cm.) |
| Depth | 3.75 in. (9.52 cm.) |
| Weight | 3 lbs. (1.36 kg.) |
| Power | |
| Supply | 5V DC |
| Consumption | 5 watts (max.) |
| Bandwidth | |
| Video amplifier bandwidth | 350 MHz |
| Actual bandwidth | 120MHz |
| Input Signal | |
| Video | 1.2 volts p-p |
| Sync | 5 volts p-p (TTL) |
| Frequency Range | |
| Horizontal | 15-70 KHz |
| Vertical | 30-170 Hz |
| Connectors | |
| Video in/out | 1 RCA composite |
| Audio in/out | 2 RCA Audio |
| Link connector | RJ-45 Shielded |
